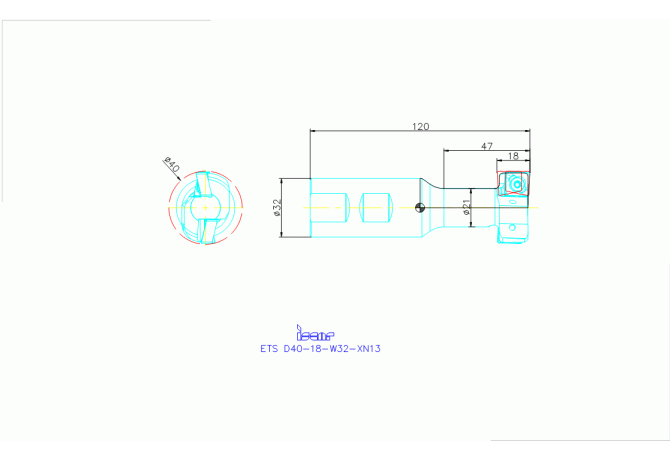

ETS D40-18-W32-XN13

Артикул: 3106542

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

18 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03201005

DN Neck diameter

21 mm

FamilyProducts

T-Slot Endmills Carrying XNMU 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3106542

Interface codes

J6 / J61

ISO

ZYL10G3200h$06

ISYC Subclass

307-04 - T-slot end mill

LOC-02 BI Block index

LOC-02 MIID Master insert identification

XNMU 130608PNTN

LOC-02 ISO

IS$$241483137015894

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-241483137015894

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LPR Protruding length

60 mm

LU Usable length

47 mm

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

ETS D40-18-W32-XN13

OAL Overall length

120 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.55 kg

ZEFP Peripheral effective cutting edge count
