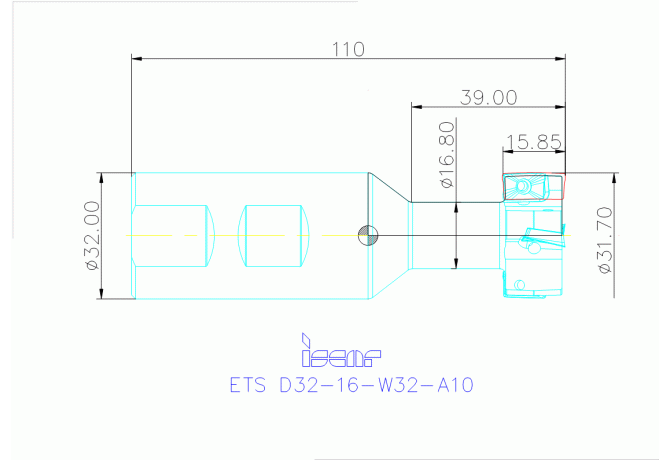

ETS D32-16-W32-A10

Артикул: 3101293

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15.85 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

31.7 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03201005

DN Neck diameter

16.8 mm

FamilyProducts

T-Slot Endmills

HAND Cutting direction

R - Right

ID Technical product number

3101293

Interface codes

J6 / J61

ISO

ZYL10G3200h$06

ISYC Subclass

307-04 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LPR Protruding length

50 mm

LU Usable length

39 mm

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

ETS D32-16-W32-A10

OAL Overall length

110 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.48 kg

ZEFP Peripheral effective cutting edge count
