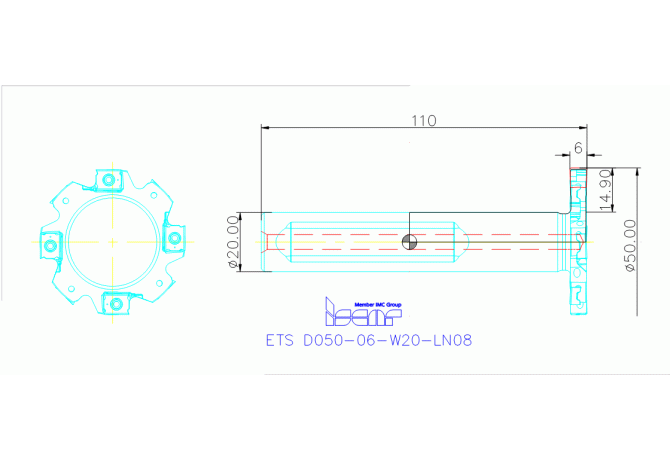

ETS D050-06-W20-LN08
ETS D050-06-W20-LN08
Артикул:
3104552
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
12
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
2 - With Coolant exit, radial
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL02001015
FamilyProducts
Grooving and Slitting Cutters
HAND Cutting direction
R - Right
ID Technical product number
3104552
Interface codes
J6 / J61
ISO
ZYL10G2000h$06
ISYC Subclass
307-04 - T-slot end mill
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
LNET 083504-TN-N
LOC-02 ISO
IS$$193274351893360
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-193274351893360
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL10G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001015
LPR Protruding length
60 mm
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
ETS D050-06-W20-LN08
OAL Overall length
110 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.28 kg
ZEFP Peripheral effective cutting edge count
4
