Главная Каталог продукции Toolunited 14 307-04 - T-slot end mill ETS D050-04-LN08-M10

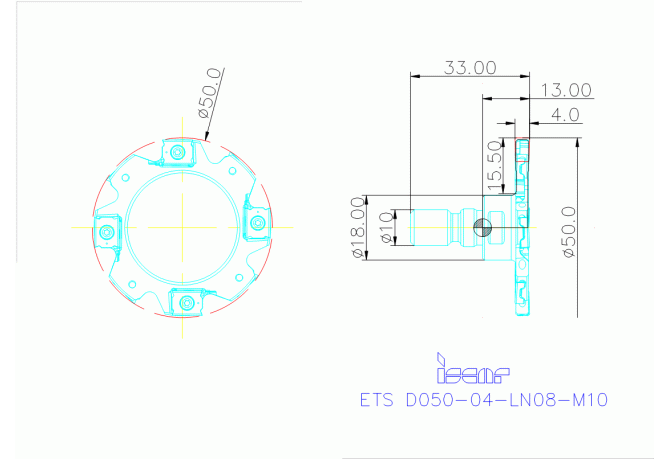

ETS D050-04-LN08-M10

Артикул: 3104045

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01000295

FamilyProducts

Grooving and Slitting Cutters with FLEXFIT Threaded Adaptation

HAND Cutting direction

R - Right

ID Technical product number

3104045

Interface codes

J6 / J61

ISO

SAI02C0100$$$$

ISYC Subclass

307-04 - T-slot end mill

LOC-02 BI Block index

LOC-02 MIID Master insert identification

LNET 082604-TN-N

LOC-02 ISO

IS$$299700825256890

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-299700825256890

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

18 mm

LOC-03 ISO

SAI02C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000295

MILTTY Mill tool type ISO

F - T-slot end mills

Name Identifying order number

ETS D050-04-LN08-M10

OAL Overall length

33 mm

THSZMS Connection thread nominal size machine side

M10

Working process

No working processes available

WT Weight of item

0.06 kg

ZEFP Peripheral effective cutting edge count
