C NF.17.R.01
C NF.17.R.01
Артикул:
C NF.17.R.01
В наличии
Характеристики
APMX Depth of cut maximum
8 mm
BD Body diameter
8.5 mm
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
17.5 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL01601015
FamilyProducts

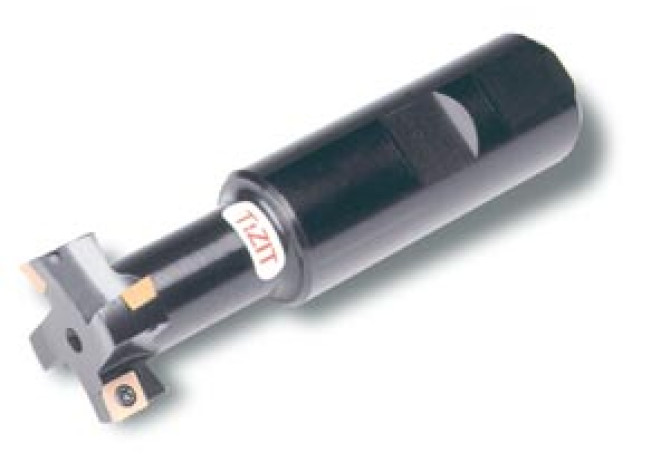

Maximill end mill shank
HAND Cutting direction
R - Right
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
307-04 - T-slot end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR Protruding length
25 mm
LS Shank length
48 mm
MILTTY Mill tool type ISO
F - T-slot end mills
Name Identifying order number
C NF.17.R.01
OAL Overall length
80 mm
Working process
FNU - Groove milling
