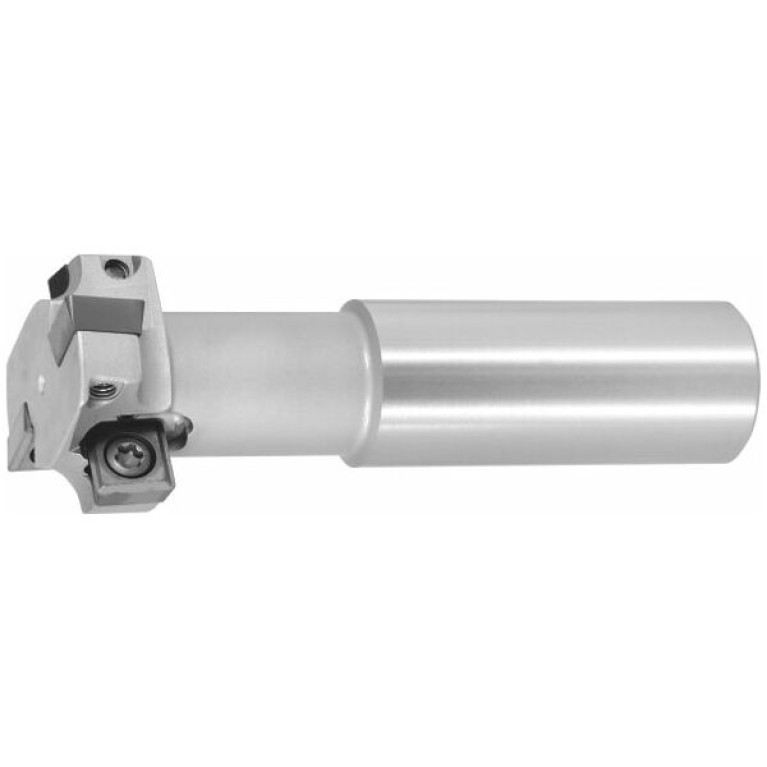

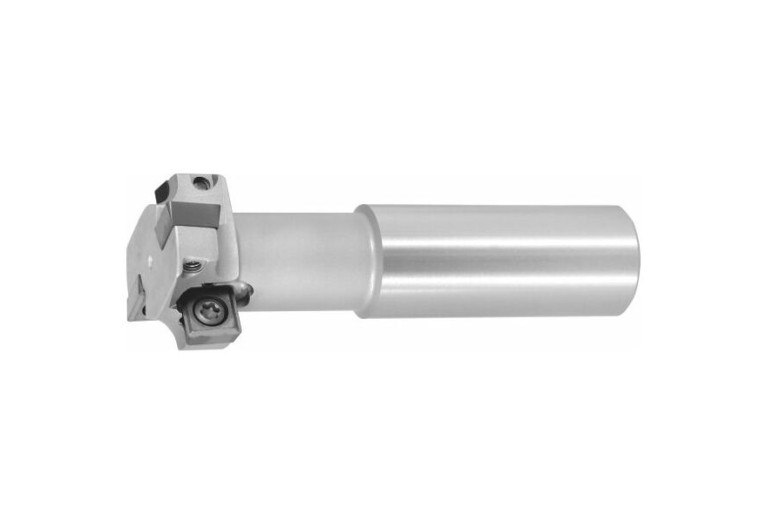

Главная Каталог продукции Toolunited 14 307-04 - T-slot end mill 218300 40/2

218300 40/2

Артикул: 218300 40/2

В наличии

В корзину

Описание

Характеристики

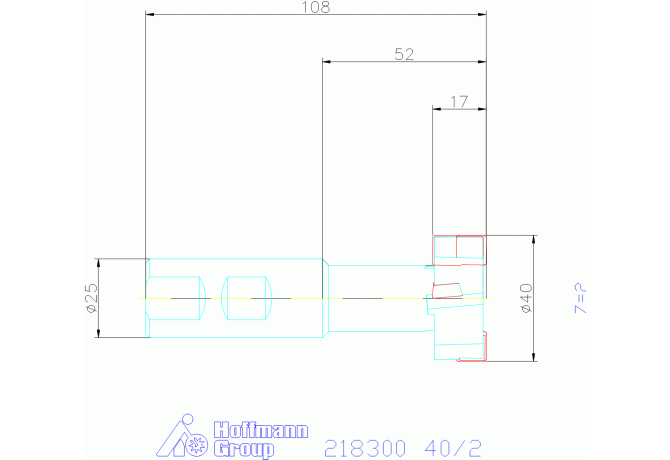

APMX Depth of cut maximum

17 mm

BD Body diameter

25 mm

CCONMS Connection count machine side

COMPC Company code

HOG - Hoffmann Group

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL02501005

DN Neck diameter

25 mm

FamilyProducts

GARANT T-slot cutter

GAMF Rake angle radial

5 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-04 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501005

LPR Protruding length

52 mm

Name Identifying order number

218300 40/2

OAL Overall length

108 mm

Working process

No working processes available

WT Weight of item

0.36 kg

ZEFF Face effective cutting edge count
