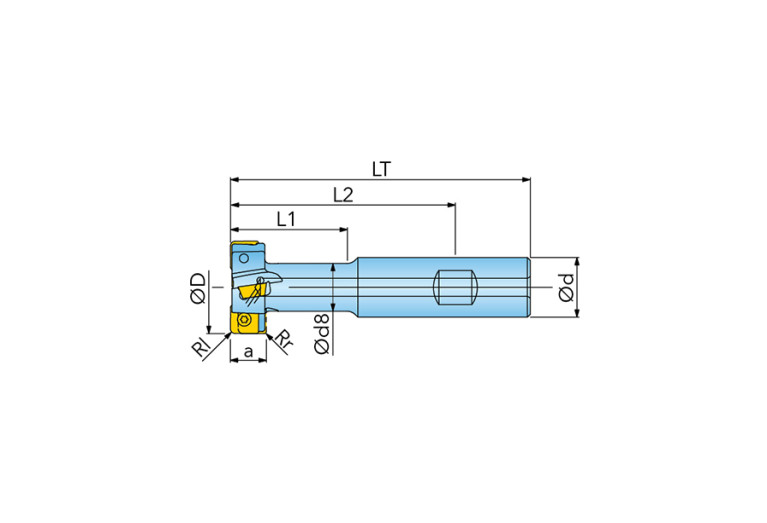

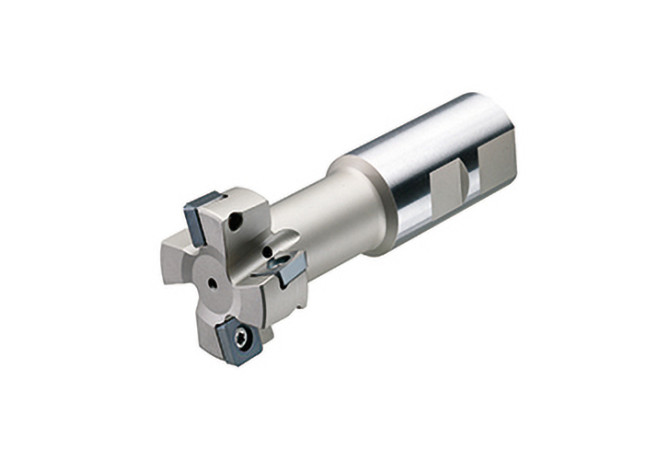

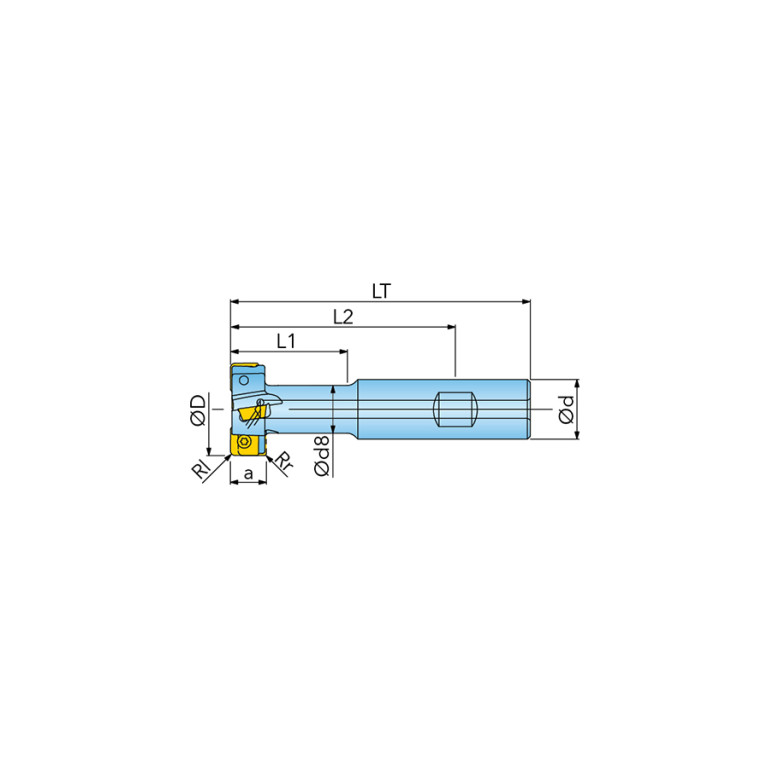

Главная Каталог продукции Toolunited 14 307-04 - T-slot end mill 15T1E025011W3R00

15T1E025011W3R00

15T1E025011W3R00 15T1E025011W3R00 15T1E025011W3R00 15T1E025011W3R00

15T1E025011W3R00

Ingersoll
Артикул: 3080206
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
13 Degree
A2B Clearance angle major Pos. B
13 Degree
B1A Cutting edge length Pos. A
7 mm
B1B Cutting edge length Pos. B
7 mm
B2A Insert width Pos. A
8 mm
B2B Insert width Pos. B
8 mm
B3A Inscribed circle diameter Pos. A
8 mm
B3B Inscribed circle diameter Pos. B
8 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
3.5 mm
C1B Insert thickness Pos. B
3.5 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.5 mm
D1B Corner radius Pos. B
0.5 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL01601015
FamilyProducts
T-Slot Mill 15T1E...W
HAND Cutting direction
R - Right
ID Technical product number
3080206
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-04 - T-slot end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01601015
LPR Protruding length
31 mm
MILTTY Mill tool type ISO
F - T-slot end mills

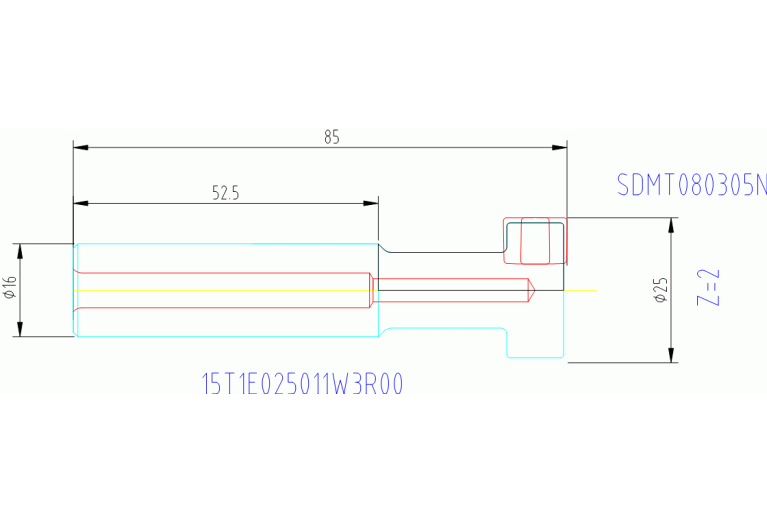

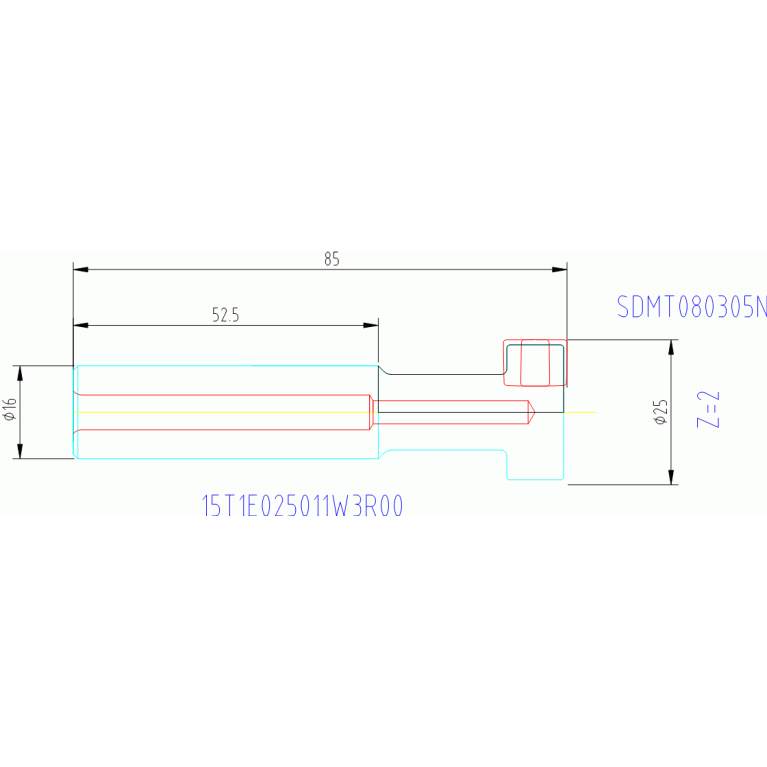

Name Identifying order number
15T1E025011W3R00
OAL Overall length
85 mm
Working process
No working processes available
WT Weight of item
0.11 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
