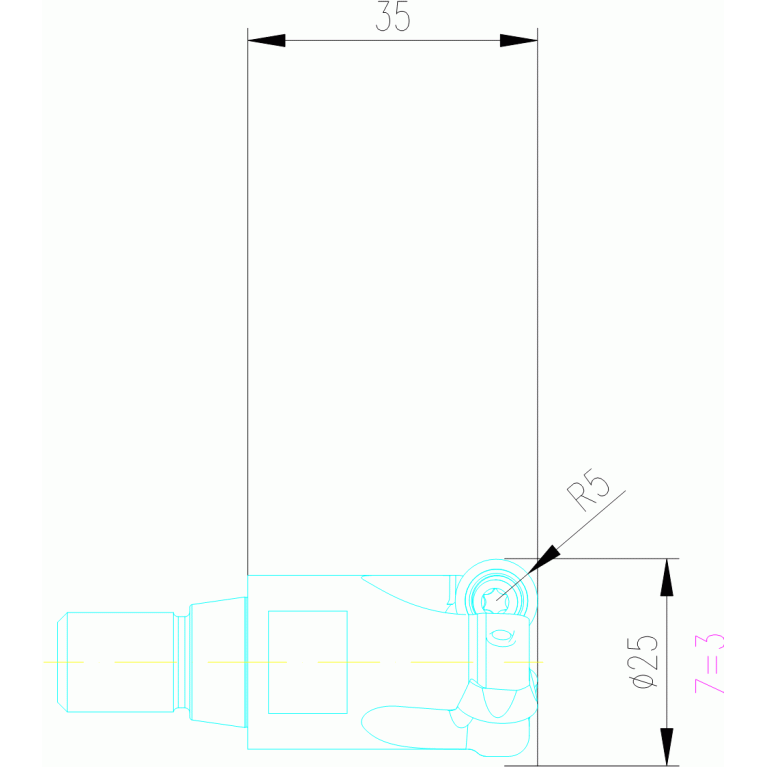

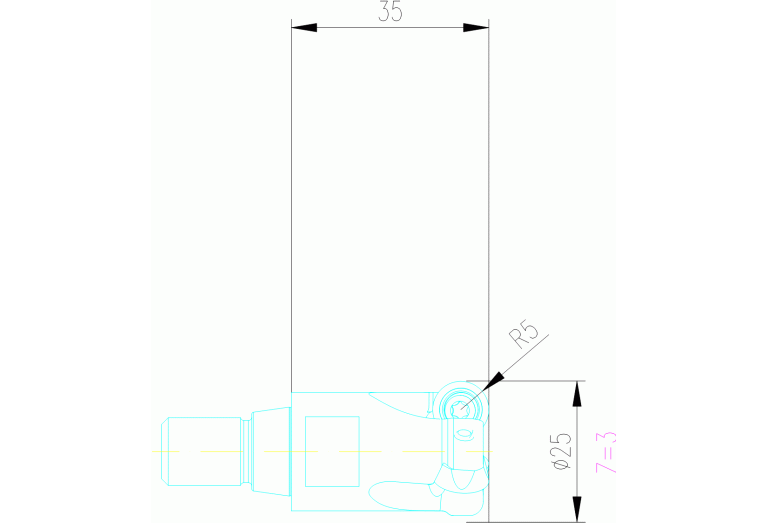

Главная Каталог продукции Toolunited 14 307-05 - Single row rounded end mill F2334.T22.025.Z03.05

F2334.T22.025.Z03.05

F2334.T22.025.Z03.05 F2334.T22.025.Z03.05 F2334.T22.025.Z03.05

F2334.T22.025.Z03.05

Walter
Артикул: 5194976
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
5 mm
BD Body diameter
22.65 mm
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
15 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
25 mm
Delivery state valid from
12/1/2023
DIN
SAW02200195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Copy milling cutters with round inserts F2334
HAND Cutting direction
R - Right
ID Technical product number
5194976
Interface codes
J6 / J61
ISO
SAW01C0220$$$$
ISYC Subclass
307-05 - Single row rounded end mill
LOC-01 BI Block index
1
LOC-01 ISO
WR$$MP10T3**3******
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-MP10T3**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$RO10T3M03****M0
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-RO10T3**
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
SAW01C0220$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02200195
LPR Protruding length
35 mm
Name Identifying order number
F2334.T22.025.Z03.05
OAL Overall length
58 mm
RMPX Ramping angle maximum
10.5 Degree
RPMX Rotational speed maximum
40000 1/min
Working process
No working processes available
WT Weight of item
0.102 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
