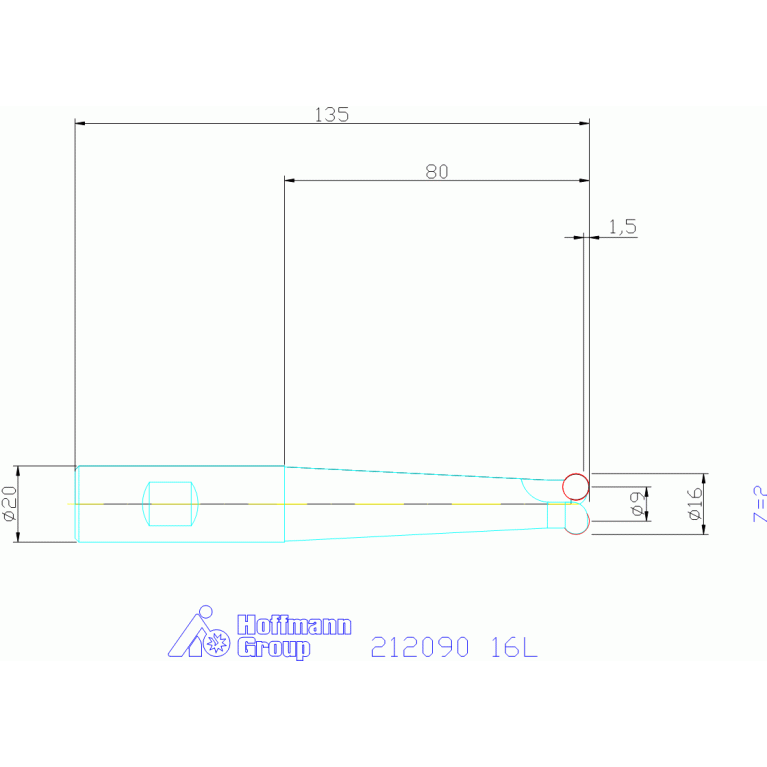

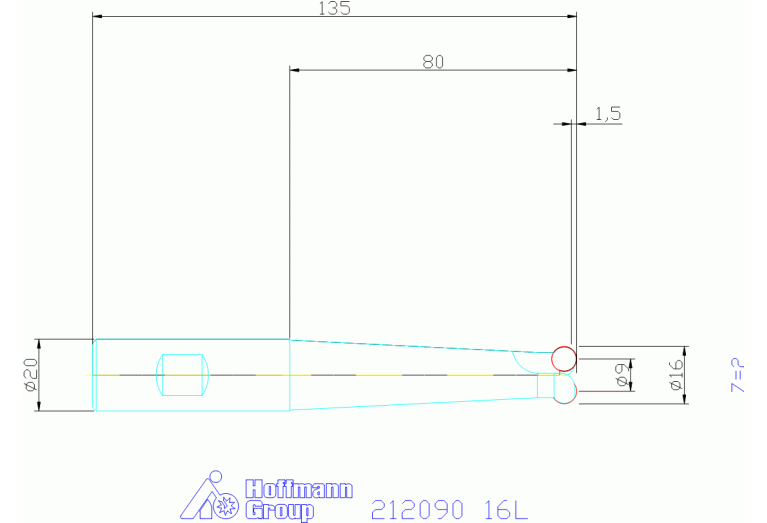

Главная Каталог продукции Toolunited 14 307-05 - Single row rounded end mill 212090 16L

212090 16L

212090 16L 212090 16L 212090 16L

212090 16L

Hoffmann Group
Артикул: 212090 16L
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
3.5 mm
B3A Inscribed circle diameter Pos. A
7 mm
BD Body diameter
12.6 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
2.38 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
16 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
9 mm
Delivery state valid from
1/11/2017
DIN
ZYL02000105
DN Neck diameter
19.5 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
GARANT Copy mill (RD..07)
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-05 - Single row rounded end mill
LF Functional length
135 mm
LH Head length
80 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
LPR Protruding length
80 mm
LU Usable length
26 mm
Name Identifying order number
212090 16L
OAL Overall length
135 mm
Working process
No working processes available
WT Weight of item
0.2 kg
ZEFF Face effective cutting edge count
2
