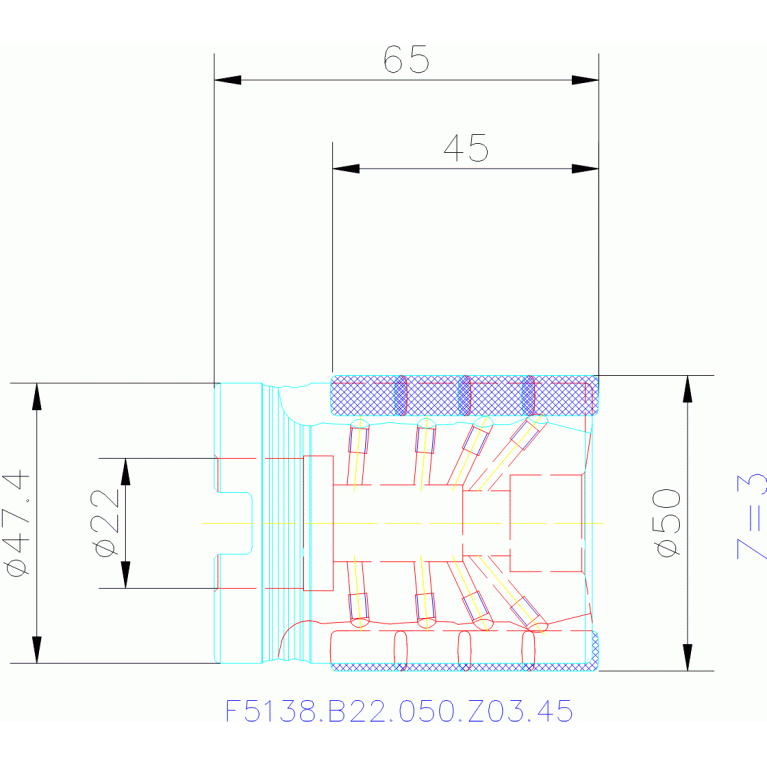

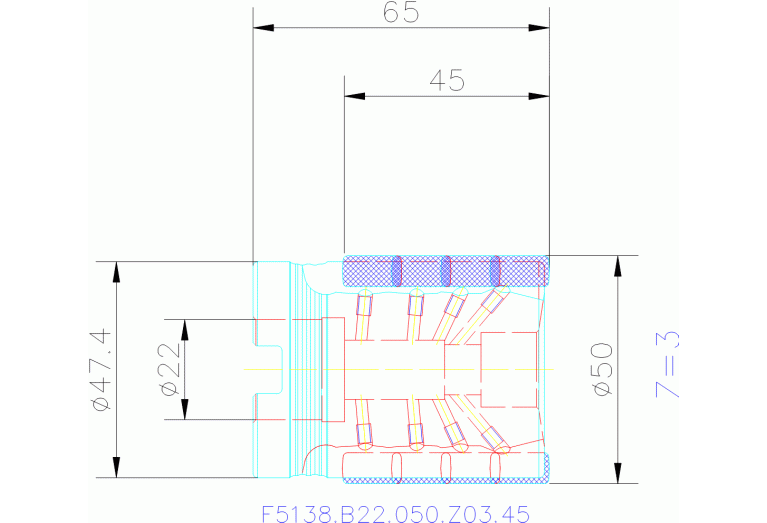

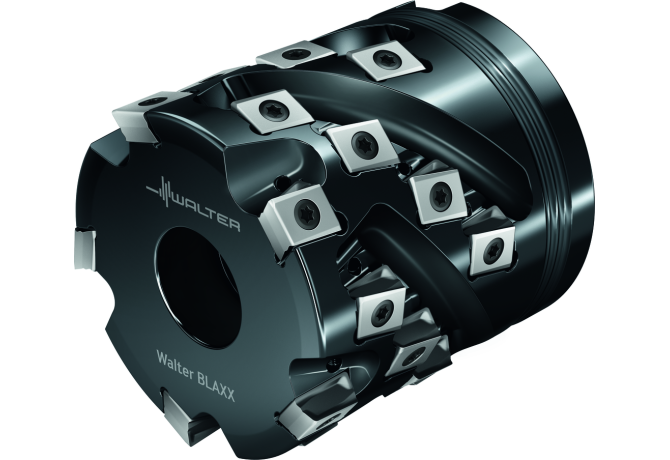

Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter F5138.B22.050.Z03.45

F5138.B22.050.Z03.45

Артикул: 6364969

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BD Body diameter

47.4 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

1.3 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CWN Cutting width minimum

45 mm

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DAH Diameter access hole

17 mm

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB Hub diameter

47.4 mm

DIN

FDA02201210

FamilyProducts

Helical milling cutters F5138

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

6364969

Interface codes

J6 / J61

ISO

FDA12G2200$$$$

ISYC Subclass

308-04 - Shell milling cutter

LOC-02 BI Block index

LOC-02 ISO

WR$$LN1306043R***08

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-LN1306043R***08

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 ISO

FDA12G2200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201210

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

F5138.B22.050.Z03.45

OAL Overall length

65 mm

RPMX Rotational speed maximum

20200 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.57 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
