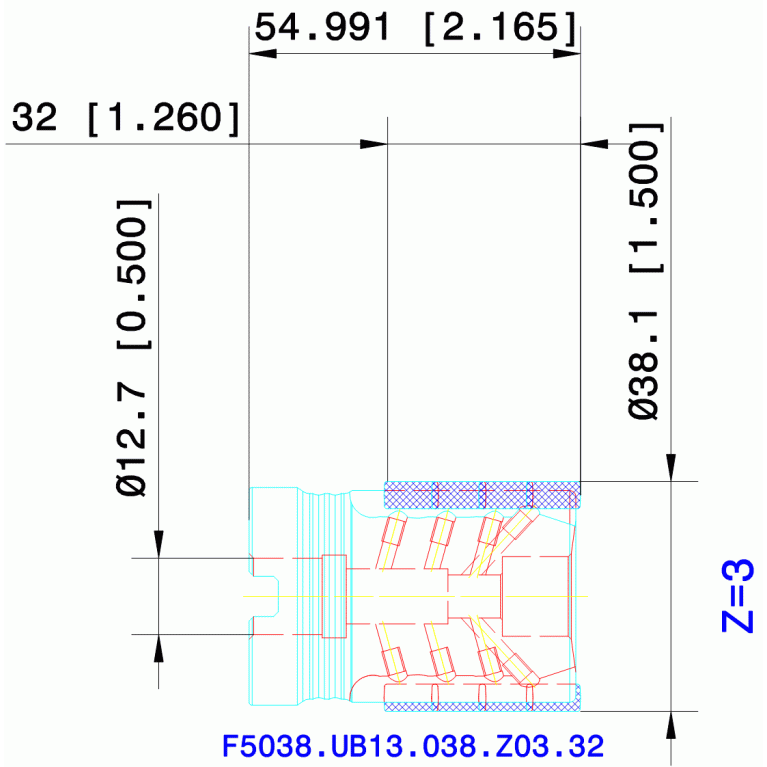

Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter F5038.UB13.038.Z03.32

F5038.UB13.038.Z03.32

Артикул: 6515696

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BD Body diameter

35.1 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

1.05 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CWN Cutting width minimum

32 mm

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

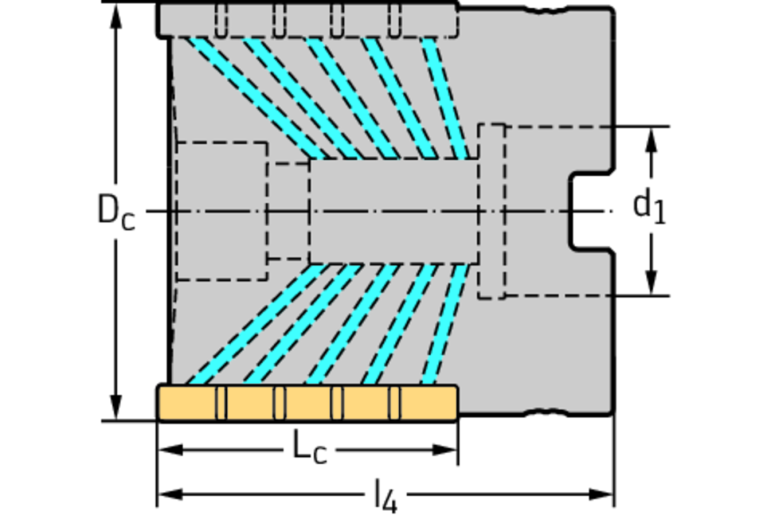

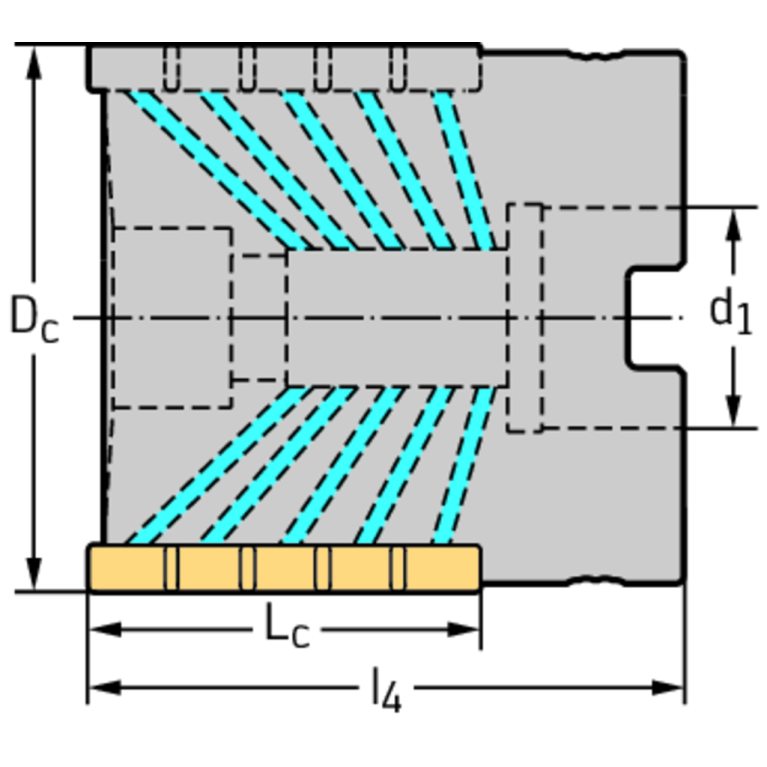

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB Hub diameter

36 mm

DIN

FDA05001230

FamilyProducts

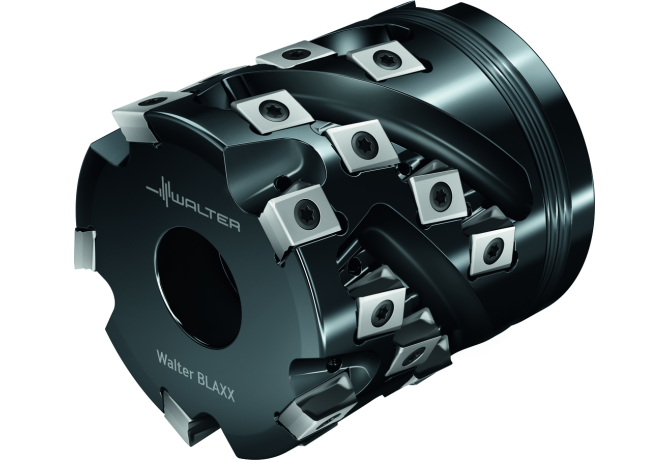

Porcupine milling cutters F5038

HAND Cutting direction

R - Right

ID Technical product number

6515696

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

FDA12R5000$$$$

ISYC Subclass

308-04 - Shell milling cutter

LOC-02 BI Block index

LOC-02 ISO

WR$$LN0904023R***04

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

W-LN0904023R***04

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 ISO

FDA12R5000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA05001230

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

F5038.UB13.038.Z03.32

OAL Overall length

55.118 mm

RPMX Rotational speed maximum

32100 1/min

Working process

FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.032 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
