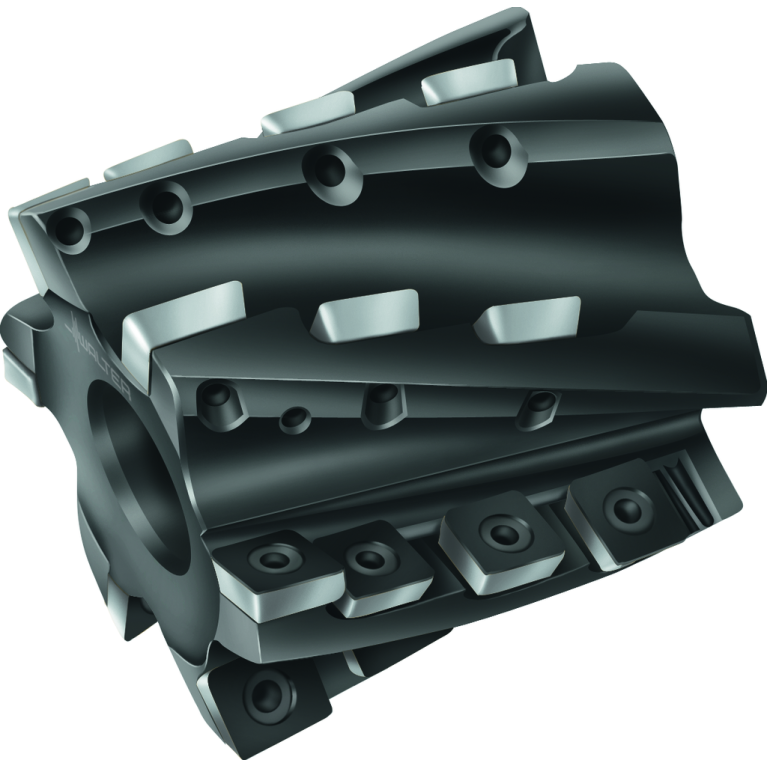

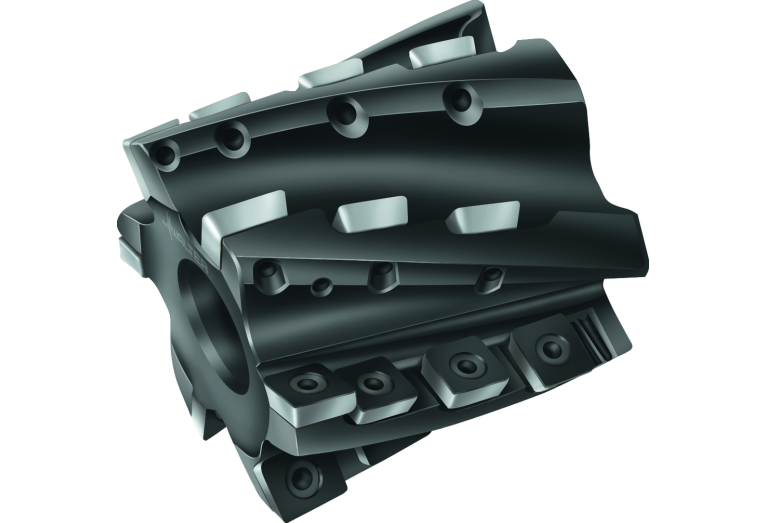

Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter F2238.UB.102.Z04.076

F2238.UB.102.Z04.076

Артикул: 5026836

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

1 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CWN Cutting width minimum

15 mm

CXSC Coolant exit style code

0 - Without coolant exit

DAH Diameter access hole

33 mm

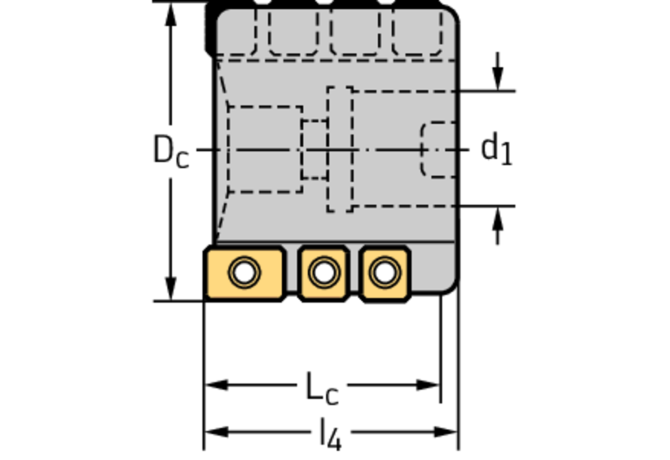

DC Cutting diameter

101.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB Hub diameter

99.6 mm

DIN

FDA15001220

FamilyProducts

Porcupine milling cutters F2238

HAND Cutting direction

R - Right

ID Technical product number

5026836

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

FDA12S1500$$$$

ISYC Subclass

308-04 - Shell milling cutter

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

1500

LOC-03 DCONMS Diameter

38.1 mm

LOC-03 ISO

FDA12S1500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA15001220

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

F2238.UB.102.Z04.076

OAL Overall length

101.6 mm

RPMX Rotational speed maximum

12900 1/min

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

3.46 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
