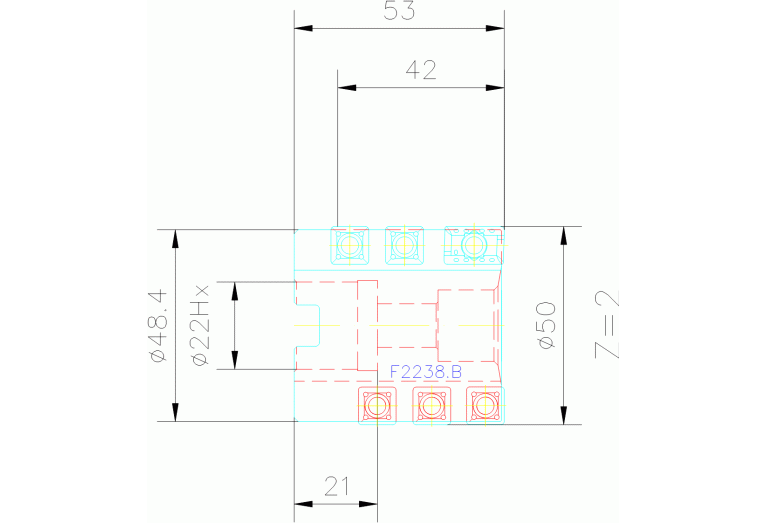

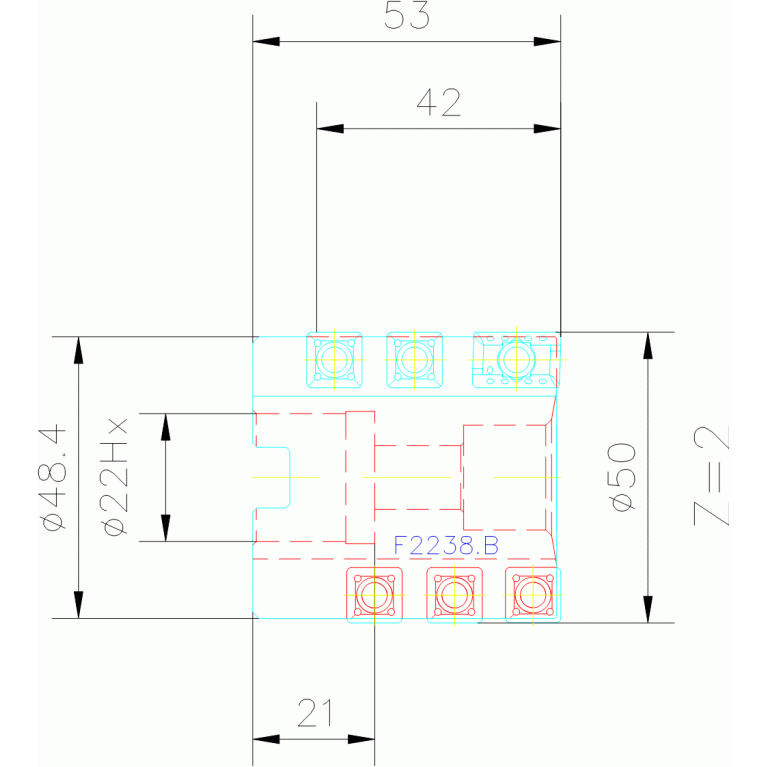

Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter F2238.B.050.Z02.42

F2238.B.050.Z02.42

Артикул: 5001523

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CDX Cutting depth maximum

0.8 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CWN Cutting width minimum

42 mm

CXSC Coolant exit style code

0 - Without coolant exit

DAH Diameter access hole

17 mm

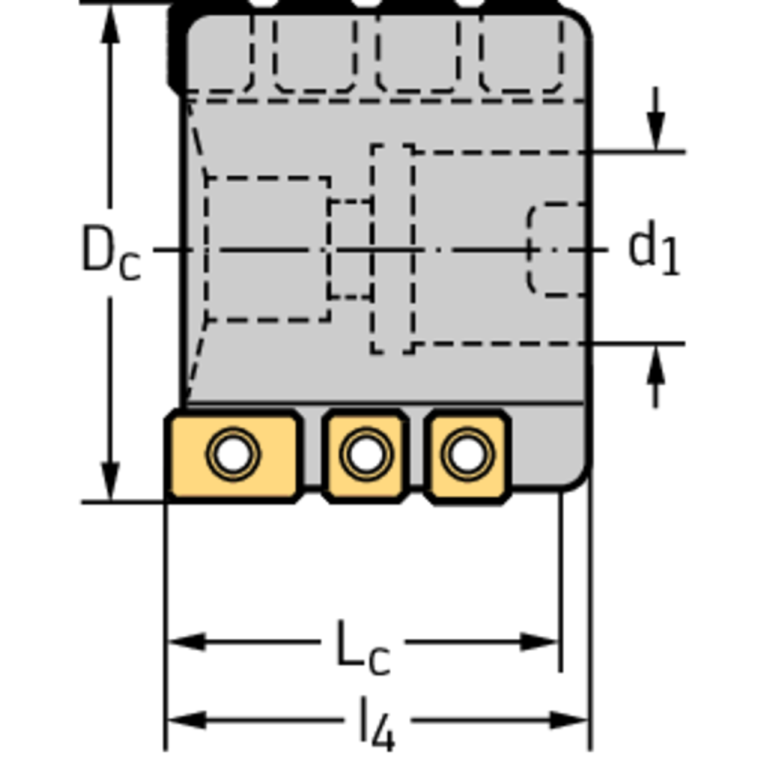

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB Hub diameter

48.4 mm

DIN

FDA02201200

FamilyProducts

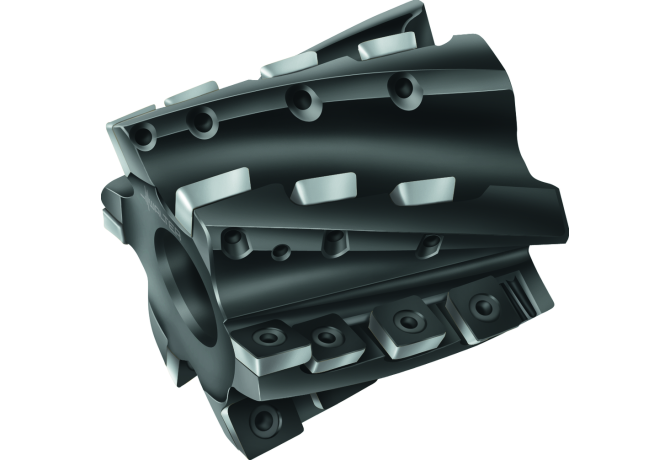

Porcupine milling cutters F2238

HAND Cutting direction

R - Right

ID Technical product number

5001523

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISISO B Indicator for ISO cutting plate Pos.B

ISO

FDA12G2200$$$$

ISYC Subclass

308-04 - Shell milling cutter

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 ISO

FDA12G2200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02201200

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

F2238.B.050.Z02.42

OAL Overall length

53 mm

RPMX Rotational speed maximum

19600 1/min

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling

WT Weight of item

0.438 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
