63T06RS90XD50

Артикул: 63T06RS90XD50

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COMPC Company code

KH - Kennametal

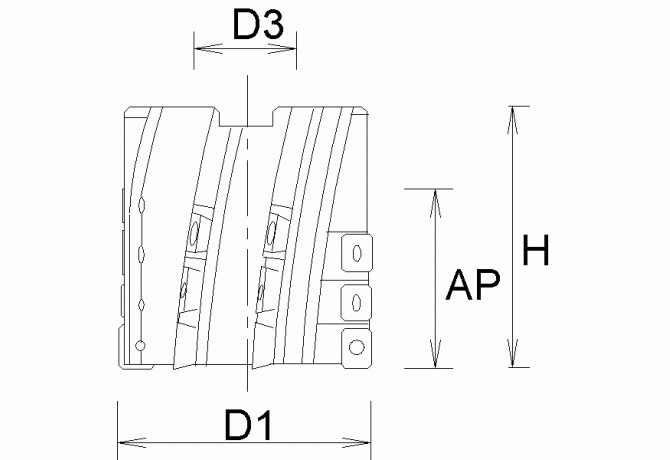

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

KH-FWWA D27

FamilyProducts

HELICAL END MILL ISO SHELL MOUNT

HAND Cutting direction

R - Right

ID Technical product number

63T06RS90XD50

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWWA D27

Name Identifying order number

63T06RS90XD50

OAL Overall length

74 mm

Working process

No working processes available

WT Weight of item

0.8 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
