Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter 63T04RS90AD44

63T04RS90AD44

Артикул: 63T04RS90AD44

В наличии

В корзину

Описание

Характеристики

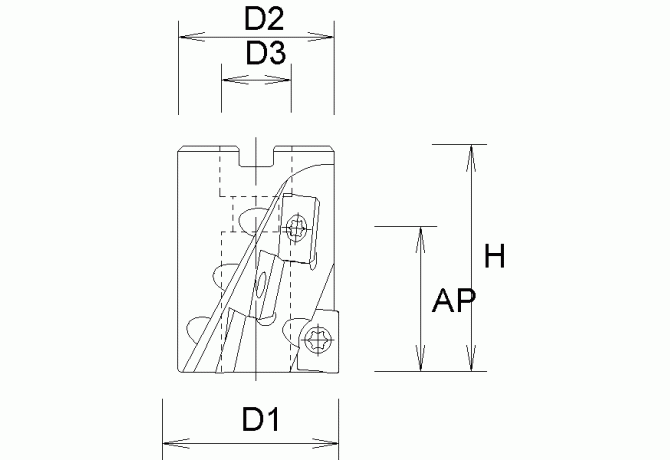

BD Body diameter

60 mm

CCONMS Connection count machine side

COMPC Company code

KH - Kennametal

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

KH-FWWA NGE27

FamilyProducts

HELICAL END MILL NGE-HAE

HAND Cutting direction

R - Right

ID Technical product number

63T04RS90AD44

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWWA NGE27

Name Identifying order number

63T04RS90AD44

OAL Overall length

74 mm

RPMX Rotational speed maximum

6300 1/min

Working process

No working processes available

WT Weight of item

0.8 kg

ZEFP Peripheral effective cutting edge count
