Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter 3M SM D050-36-4-22-13

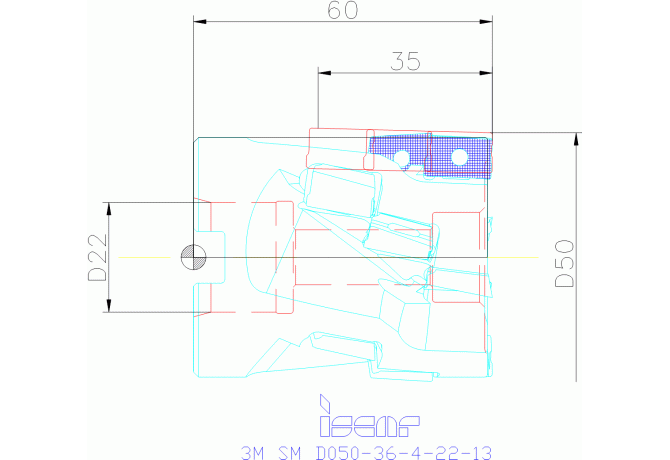

3M SM D050-36-4-22-13

Артикул: 3102239

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DHUB Hub diameter

48 mm

DIN

FDA02202200

FamilyProducts

Heavy Duty Extended Flute Shell Mills Carrying 3M AXKT 1304.../2006... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3102239

Interface codes

J6 / J61

ISO

FDA02G2200H$07

ISYC Subclass

308-04 - Shell milling cutter

LOC-02 BI Block index

LOC-02 MIID Master insert identification

3M AXKT 1304..

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

FDA02G2200H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

Name Identifying order number

3M SM D050-36-4-22-13

OAL Overall length

60 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.53 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
