Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter 22J3R040035F0R00

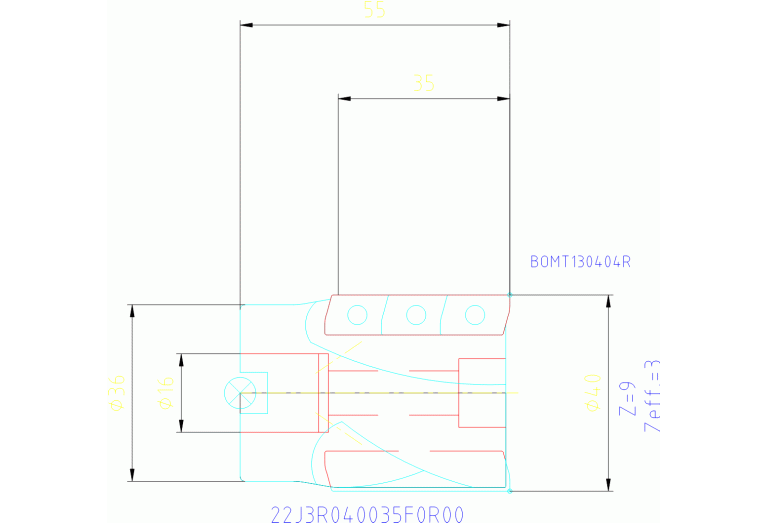

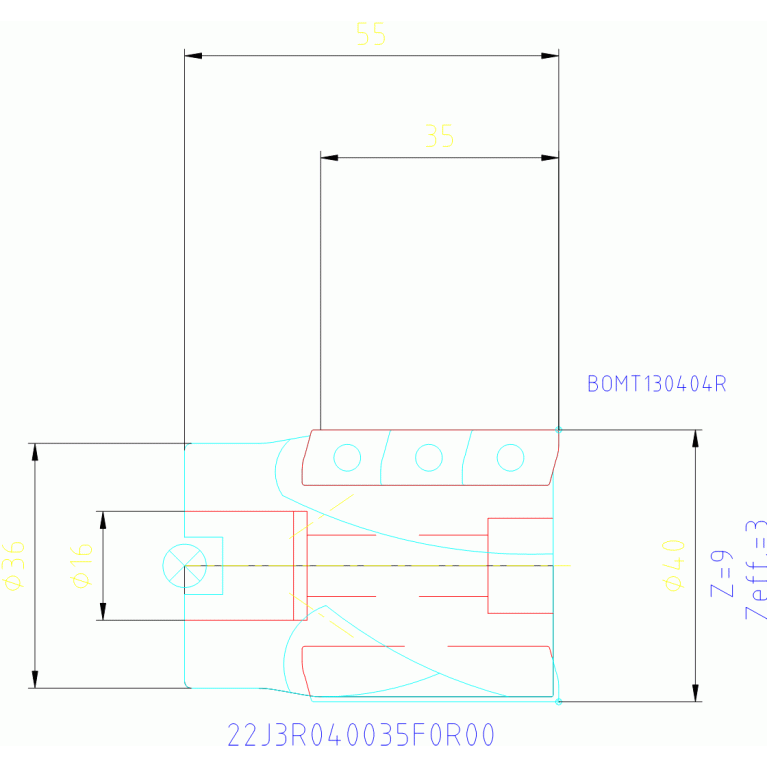

22J3R040035F0R00

22J3R040035F0R00 22J3R040035F0R00 22J3R040035F0R00 22J3R040035F0R00

22J3R040035F0R00

Ingersoll
Артикул: 3074959
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
82 Degree
A1B Cutting edge angle major Pos. B
82 Degree
A2A Clearance angle major Pos. A
13 Degree
A2B Clearance angle major Pos. B
13 Degree
B1A Cutting edge length Pos. A
12.1 mm
B1B Cutting edge length Pos. B
12.1 mm
B2A Insert width Pos. A
8.1 mm
B2B Insert width Pos. B
8.1 mm
B3A Inscribed circle diameter Pos. A
8.1 mm
B3B Inscribed circle diameter Pos. B
8.1 mm
BLDA Tool style code Position A
5
BLDB Tool style code Position B
5
C1A Insert thickness Pos. A
4.85 mm
C1B Insert thickness Pos. B
4.85 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
35 mm
CICT Cutting item count
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
36 mm
DIN
FDA01602210
FamilyProducts
Extended Flute End Mill 22J3R...F
HAND Cutting direction
R - Right
ID Technical product number
3074959
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-04 - Shell milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01602210
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
22J3R040035F0R00
OAL Overall length
55 mm
Working process
No working processes available
WT Weight of item
0.23 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
