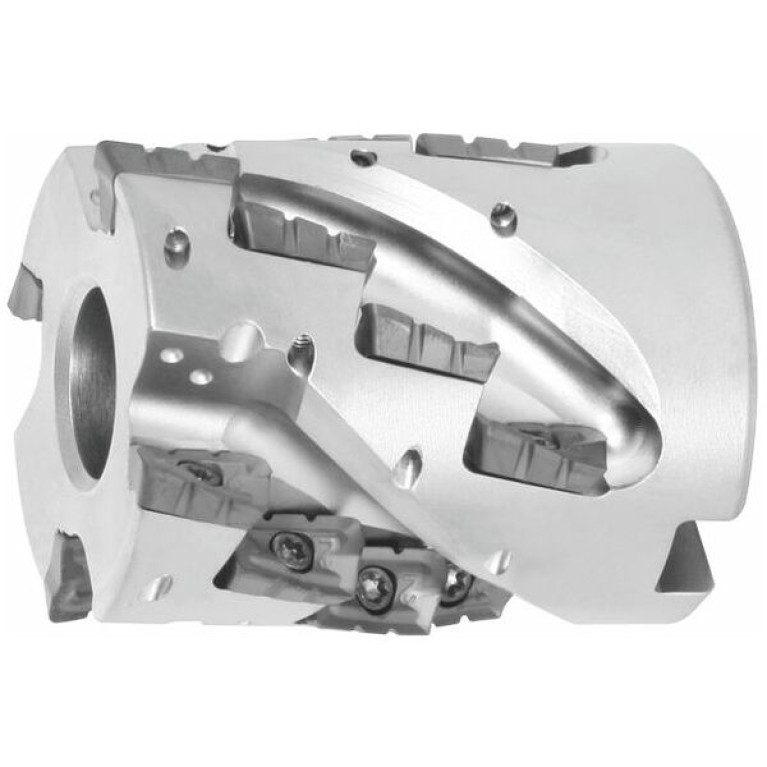

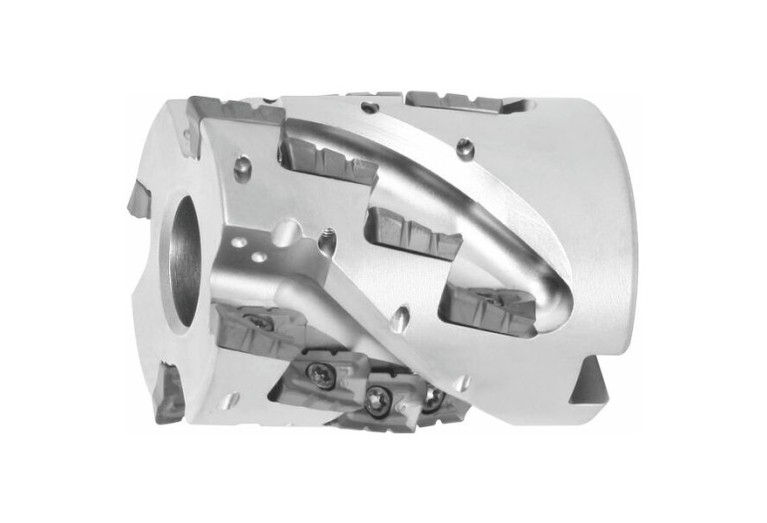

Главная Каталог продукции Toolunited 14 308-04 - Shell milling cutter 227455 40/4

227455 40/4

Артикул: 227455 40/4

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

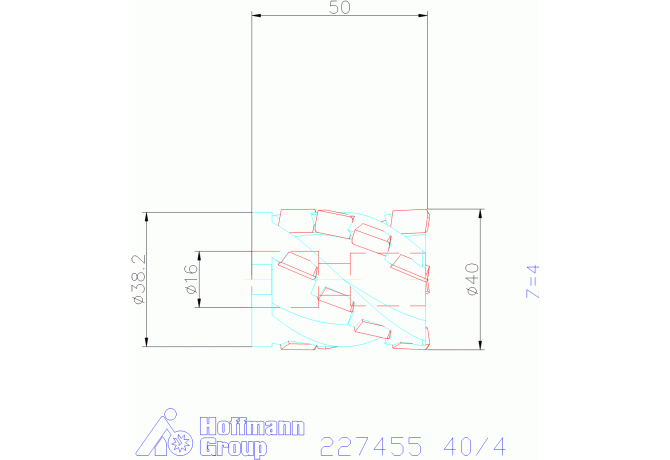

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

38.2 mm

DIN

FDA01600200

FamilyProducts

KYOCERA 90° shell end mill MECH11

GAMF Rake angle radial

23 Degree

GAMP Rake angle axial

-8 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01600200

Name Identifying order number

227455 40/4

OAL Overall length

50 mm

Working process

No working processes available

WT Weight of item

0.24 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
