Главная Каталог продукции Toolunited 14 307-00 - End mill for indexable inserts unspecified WSX445R5003SA32M

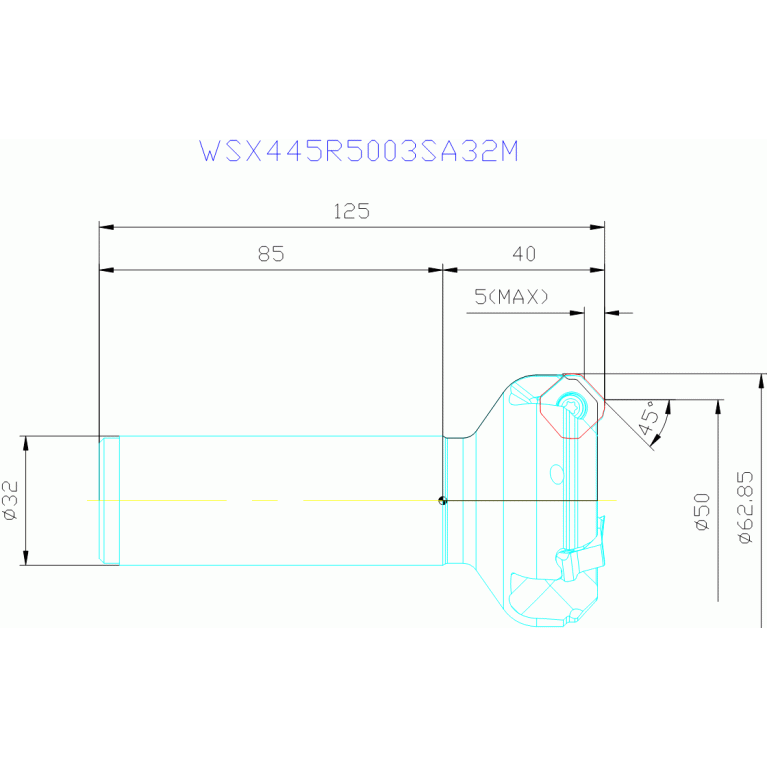

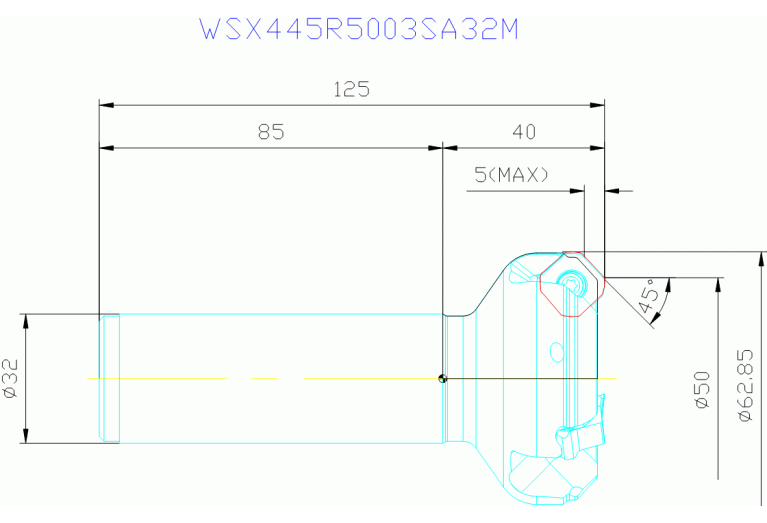

WSX445R5003SA32M

WSX445R5003SA32M WSX445R5003SA32M WSX445R5003SA32M

WSX445R5003SA32M

Mitsubishi Materials
Артикул: 829337
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
5 mm
B1A Cutting edge length Pos. A
14 mm
B3A Inscribed circle diameter Pos. A
14 mm
BI Block index
1
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
8.4 mm
CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
1.2 mm
D6A Wiper edge length Pos. A
1.5 mm
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL03200115
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
829337
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
KAPR Tool cutting edge angle
45 Degree
LF Functional length
125 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SNGU140812ANER-L
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
MI-SNGU140812ANER
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SNGU140812ANER-L
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
MI-SNGU140812ANFR
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115
LPR Protruding length
40 mm
MIID Master insert identification
SNGU140812ANER-L
Name Identifying order number
WSX445R5003SA32M
OAL Overall length
125 mm
Working process
No working processes available
WT Weight of item
0.98 kg
ZEFP Peripheral effective cutting edge count
3
