Главная Каталог продукции Toolunited 14 307-00 - End mill for indexable inserts unspecified EVX16032RLA

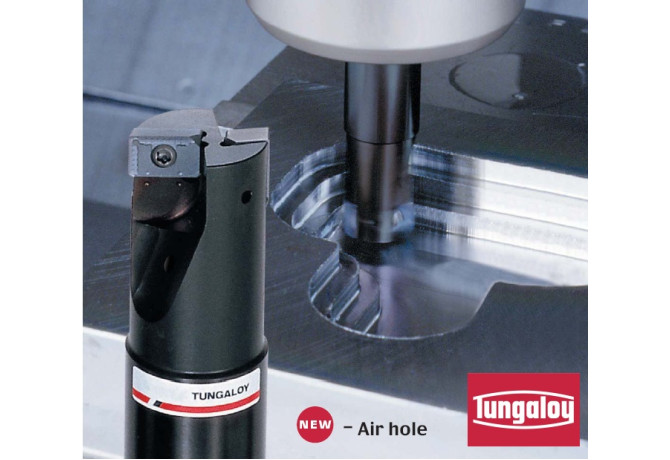

EVX16032RLA

Артикул: 6821310

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

15 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/24/2006

DIN

ZYL02500115

FamilyProducts

Tungaloy EVX endmill

HAND Cutting direction

R - Right

ID Technical product number

6821310

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

LF Functional length

255 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

XXMU16X508

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

XX16X5PR3R

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

80 mm

LS Shank length

175 mm

MIID Master insert identification

XXMU16X508

Name Identifying order number

EVX16032RLA

OAL Overall length

255 mm

RMPX Ramping angle maximum

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

Максимальная глубина врезания (AZ) / Plunge depth maximum (AZ)

16 mm

Номер таблицы (BI) / Block index (BI)
