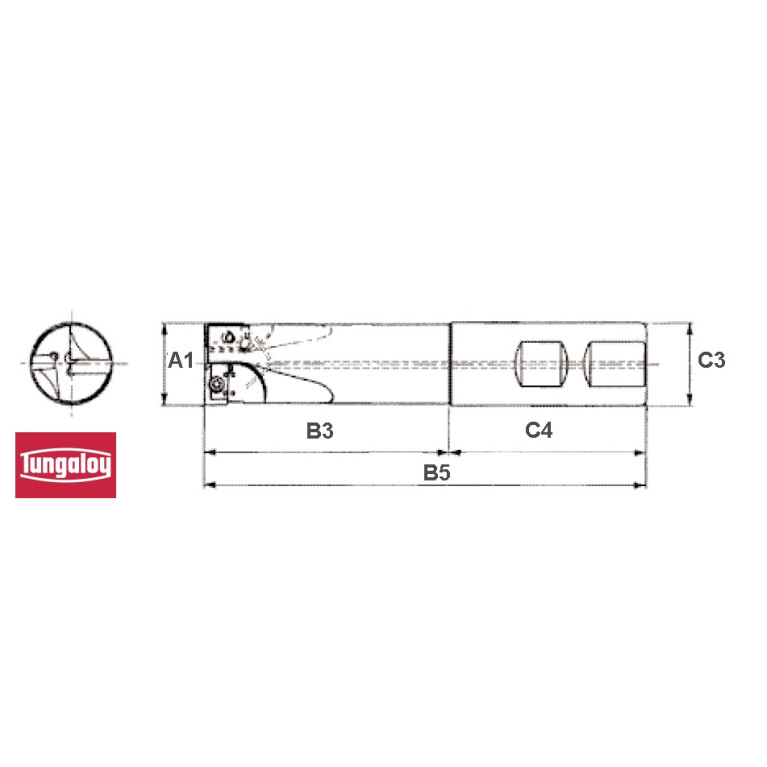

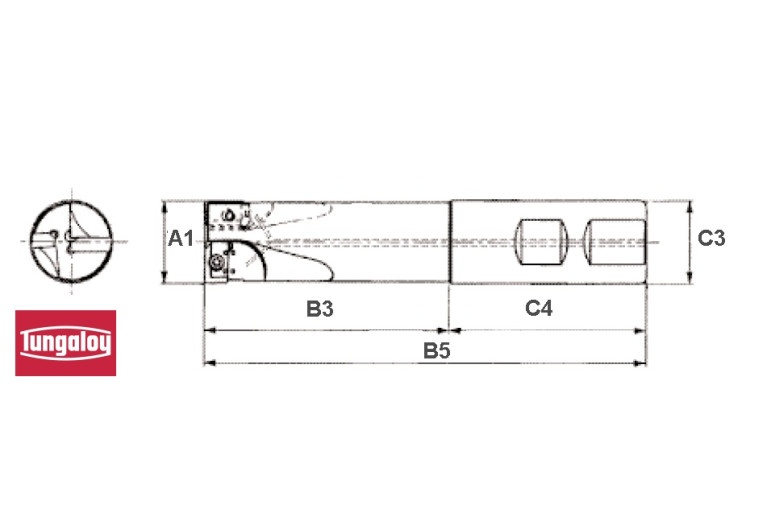

EVX12025RLA-E

Артикул: 6821659

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

11.5 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/24/2006

DIN

ZYL02501015

FamilyProducts

Tungaloy EVX endmill

HAND Cutting direction

R - Right

ID Technical product number

6821659

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

LOC-01 BI Block index

LOC-01 MIID Master insert identification

XXMU12X408

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

XX12X4PR3R

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

LPR Protruding length

75 mm

LS Shank length

60 mm

MIID Master insert identification

XXMU12X408

Name Identifying order number

EVX12025RLA-E

OAL Overall length

135 mm

RMPX Ramping angle maximum

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

FZI - Circular milling

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

Максимальная глубина врезания (AZ) / Plunge depth maximum (AZ)

12.5 mm

Номер таблицы (BI) / Block index (BI)
