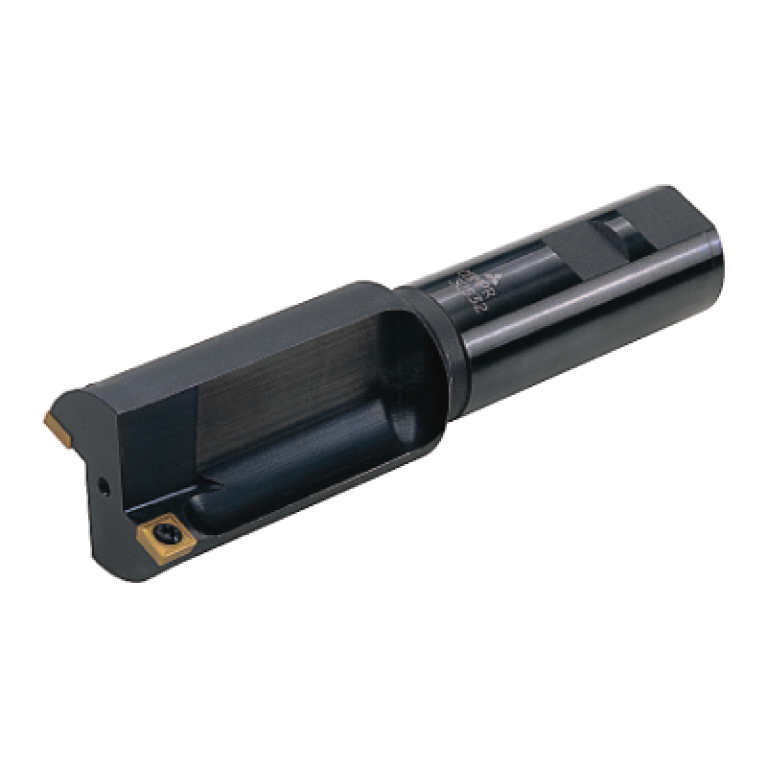

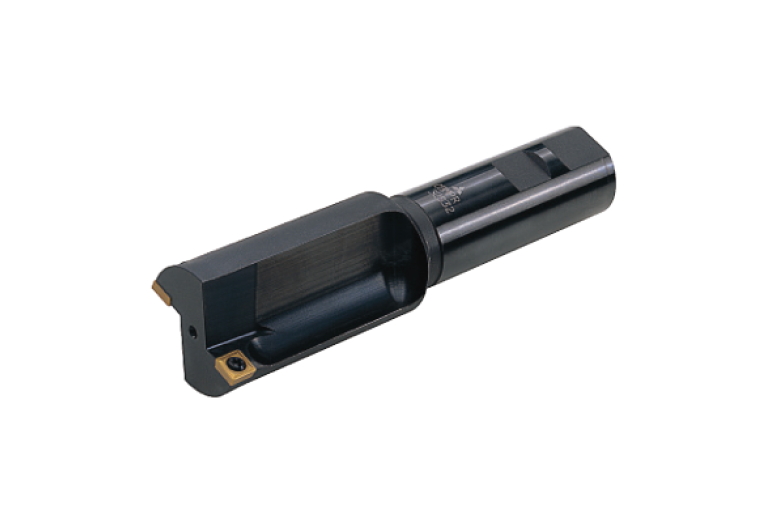

Главная Каталог продукции Toolunited 14 307-00 - End mill for indexable inserts unspecified CBJPR172S25

CBJPR172S25

CBJPR172S25 CBJPR172S25 CBJPR172S25

CBJPR172S25

Mitsubishi Materials
Артикул: 419426
В наличии
В корзину
Описание
Характеристики

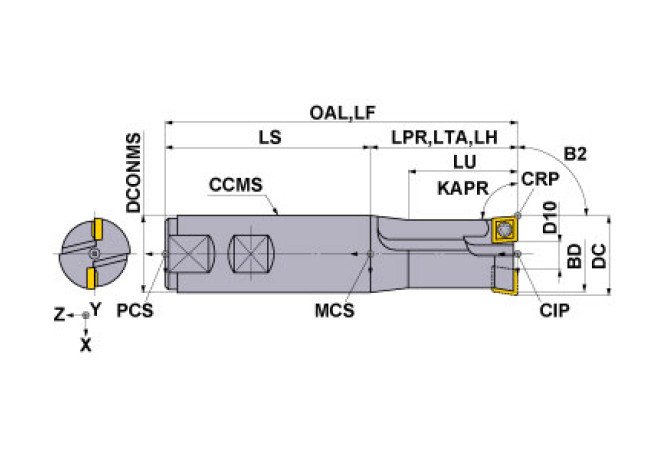

CCONMS Connection count machine side
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

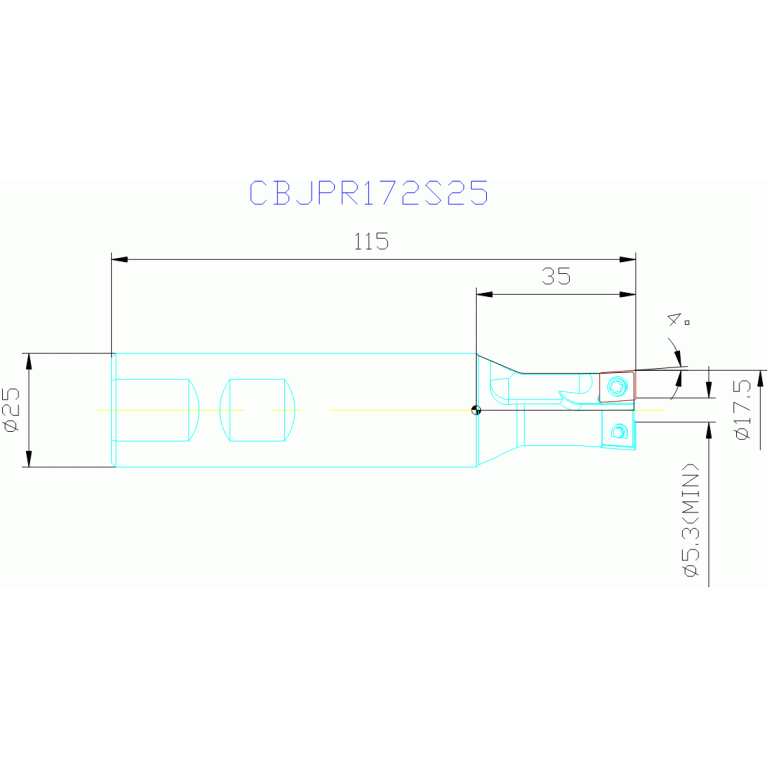

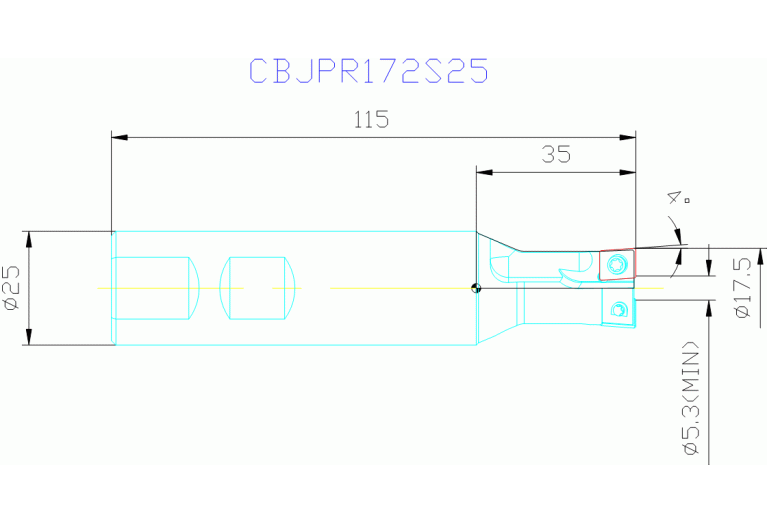

DC Cutting diameter
17.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL02501015
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
419426
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
KAPR Tool cutting edge angle
94 Degree
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
MI-JPMT060204
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
35 mm
Name Identifying order number
CBJPR172S25
OAL Overall length
115 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
2
Номер таблицы (BI) / Block index (BI)
1
