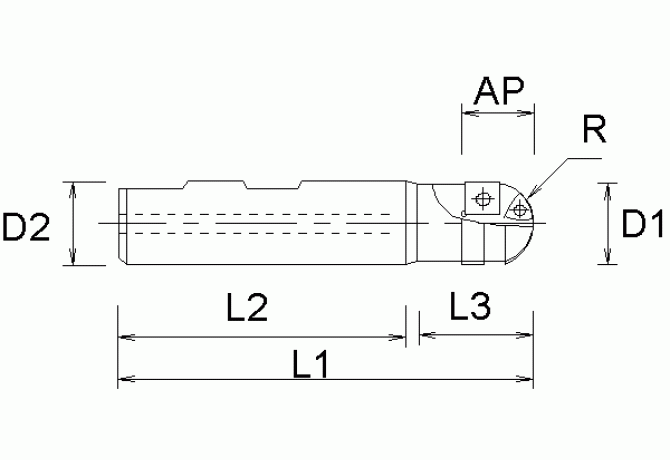

4.34732R320

Артикул: 4.34732R320

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

30 mm

CCONMS Connection count machine side

COMPC Company code

KH - Kennametal

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

KH-FWSGK32

FamilyProducts

BALL NOSE END MILL WPGX

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWSGK32

Name Identifying order number

4.34732R320

OAL Overall length

130 mm

RE Corner radius insert position A

16 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
