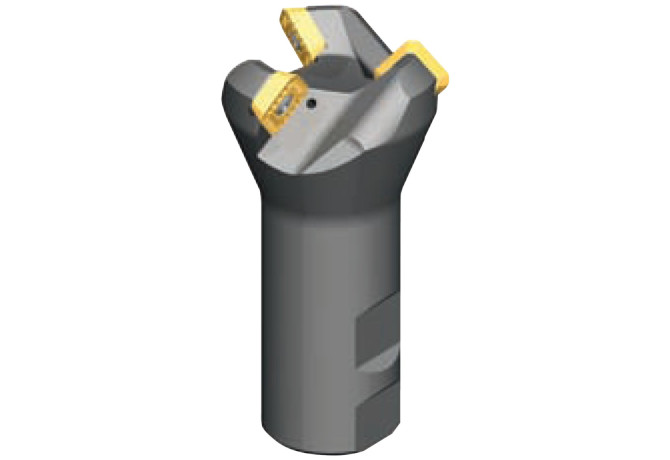

Главная Каталог продукции Toolunited 14 307-00 - End mill for indexable inserts unspecified 40D3R049B32SSE14G

40D3R049B32SSE14G

40D3R049B32SSE14G 40D3R049B32SSE14G 40D3R049B32SSE14G

40D3R049B32SSE14G

Kennametal
Артикул: 1926943
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
7 mm
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
54 mm
Delivery state valid from
1/4/2011
DIN
ZYL03201015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
45° Lead Mill KSSM
HAND Cutting direction
R - Right
ID Technical product number
1926943
Interface codes
J6 /
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201015
LPR Protruding length
49 mm
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
40D3R049B32SSE14G
OAL Overall length
110 mm
RPMX Rotational speed maximum
26000 1/min
Working process
No working processes available
WT Weight of item
0.7 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
