218410 50/4
218410 50/4
Артикул:
218410 50/4
В наличии
Характеристики

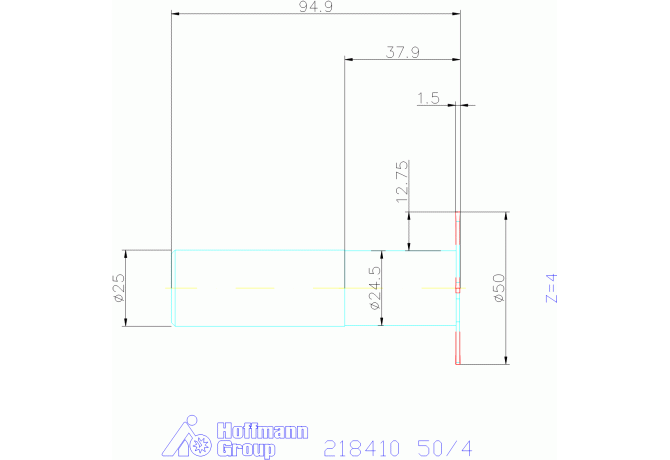

BD Body diameter
24.5 mm
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL02500105
DN Neck diameter
24.5 mm
FamilyProducts

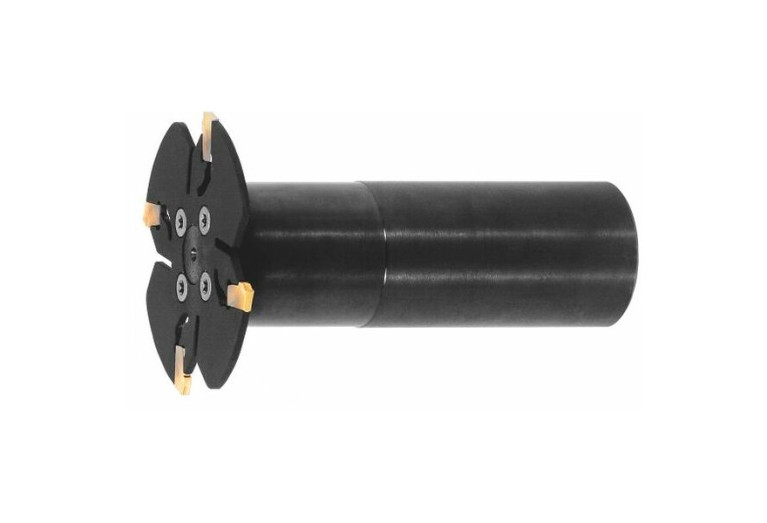

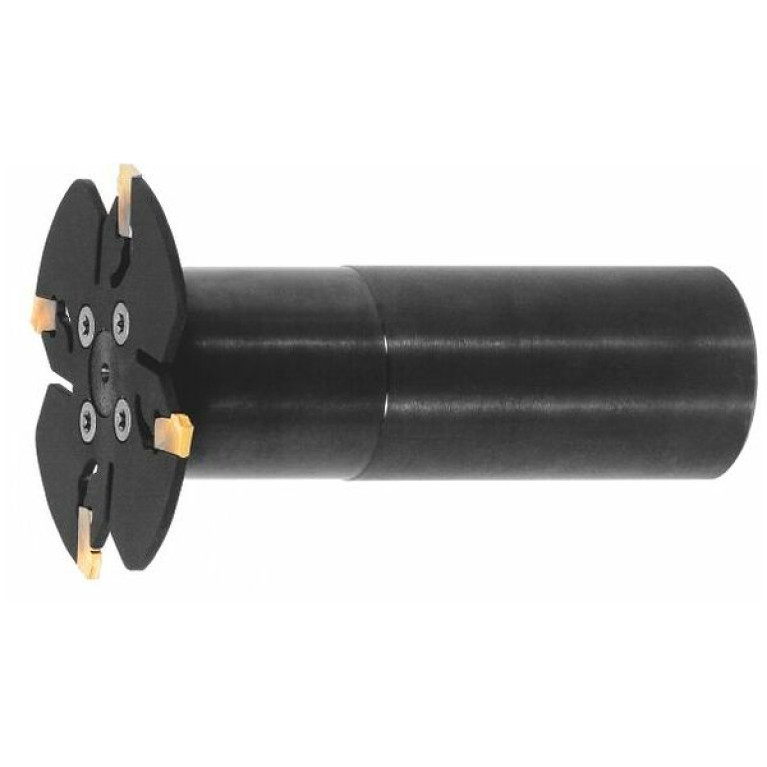

GARANT Side / parting off milling cutter with plain shank St
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
KAPR Tool cutting edge angle
90 Degree
LF Functional length
94.9 mm
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
HOG-QNGA101502
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500105
LPR Protruding length
1.5 mm
LU Usable length
37.9 mm
Name Identifying order number
218410 50/4
OAL Overall length
94.9 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.51 kg
ZEFP Peripheral effective cutting edge count
4
