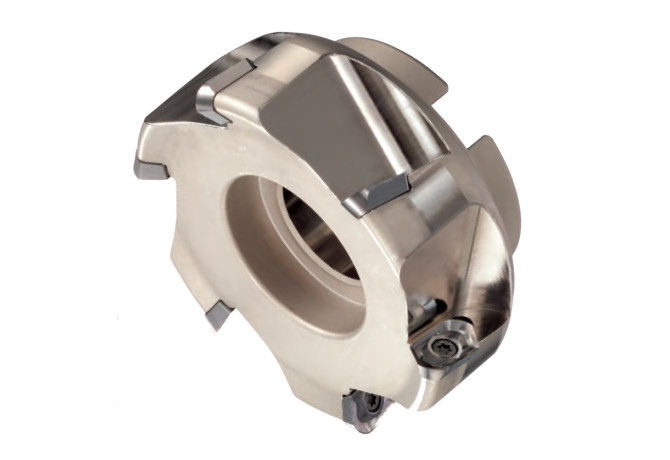

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter WAX4100-3.2

WAX4100-3.2

Артикул: WAX4100-3.2

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

100 mm

DCCB Counterbore diameter connection bore

17 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/3/2012

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

corner mill WAX 4000 metric

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

ID Technical product number

WAX4100-3.2

Interface codes

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

WAX4100-3.2

OAL Overall length

63 mm

RMPX Ramping angle maximum

4 Degree

RPMX Rotational speed maximum

12000 1/min

Working process

FEC - Square shoulder milling

WT Weight of item

1.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
