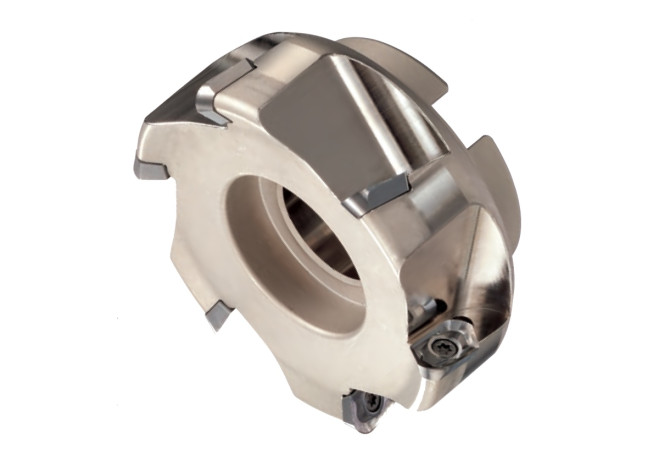

WAX4063-3.2

Артикул: WAX4063-3.2

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

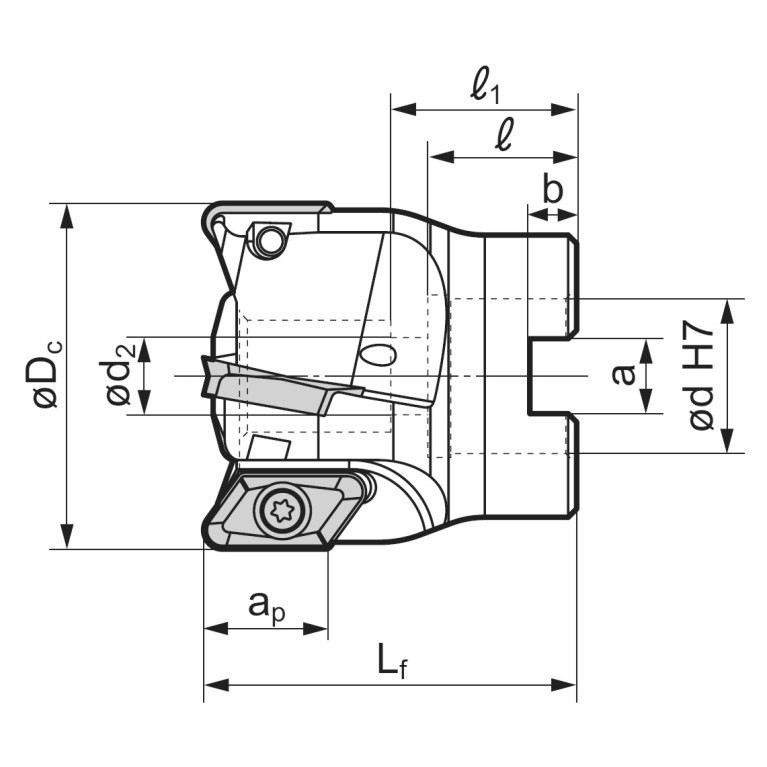

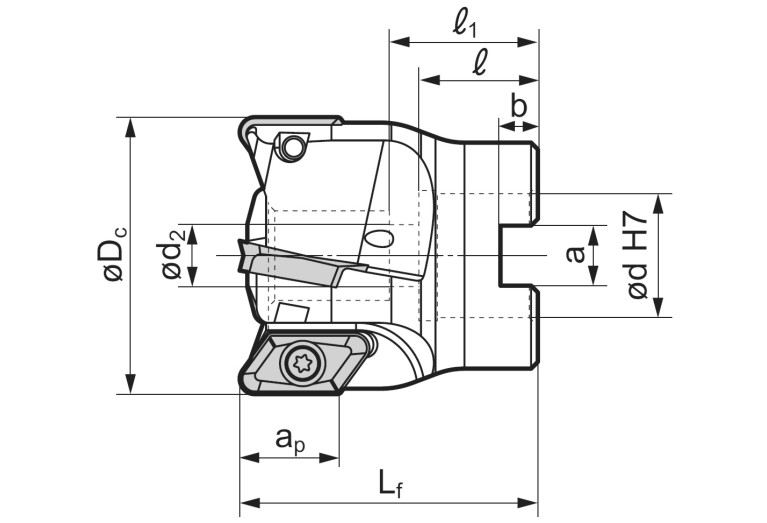

DC Cutting diameter

63 mm

DCCB Counterbore diameter connection bore

11 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/24/2021

DIN

FDA02200110

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

corner mill WAX 4000 metric

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

6 Degree

ID Technical product number

WAX4063-3.2

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

21 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200110

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

WAX4063-3.2

OAL Overall length

50 mm

RMPX Ramping angle maximum

7 Degree

RPMX Rotational speed maximum

16000 1/min

Working process

FEC - Square shoulder milling

WT Weight of item

0.54 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
