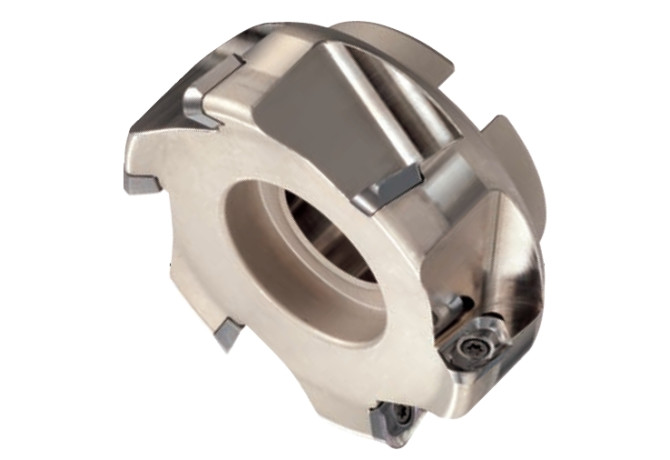

WAX3100RS-3.2

WAX3100RS-3.2 WAX3100RS-3.2 WAX3100RS-3.2

WAX3100RS-3.2

Sumitomo
Артикул: WAX3100RS-3.2
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
2
CDX Cutting depth maximum
10 mm
CICT Cutting item count
6
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
100 mm
DCCB Counterbore diameter connection bore
18 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/24/2021
DIN
FDA03201210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Eckfräser WAX3000RS bis R=3,2 mm
HAND Cutting direction
R - Right
ID Technical product number
WAX3100RS-3.2
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03201210
Name Identifying order number
WAX3100RS-3.2
OAL Overall length
63 mm
RMPX Ramping angle maximum
3 Degree
RPMX Rotational speed maximum
14000 1/min
Working process
FEC - Square shoulder milling
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
