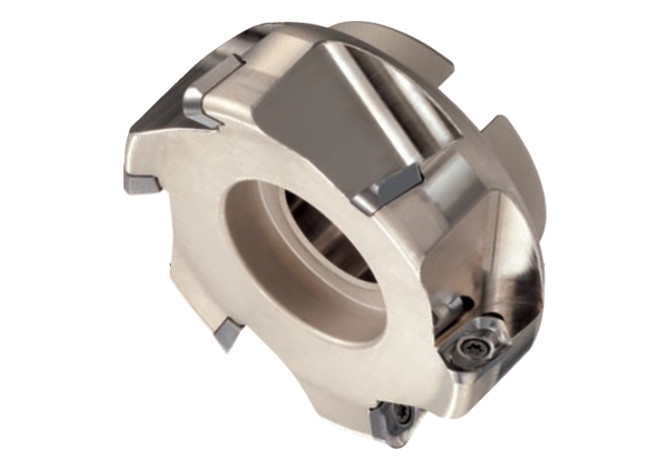

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter WAX3050RS-4.0

WAX3050RS-4.0

WAX3050RS-4.0

Sumitomo

Артикул: WAX3050RS-4.0

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

85 Degree

A2A Clearance angle major Pos. A

20 Degree

B1A Cutting edge length Pos. A

16 mm

B2A Insert width Pos. A

16.4 mm

BLDA Tool style code Position A

5

C1A Insert thickness Pos. A

5 mm

CCONMS Connection count machine side

2

CDX Cutting depth maximum

10 mm

CICT Cutting item count

4

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

11 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/24/2021

DIN

FDA02200210

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

4

FamilyProducts

Eckfräser WAX3000RS für R>=4,0 mm

HAND Cutting direction

R - Right

ID Technical product number

WAX3050RS-4.0

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200210

Name Identifying order number

WAX3050RS-4.0

OAL Overall length

50 mm

RMPX Ramping angle maximum

7 Degree

RPMX Rotational speed maximum

20000 1/min

Working process

FEC - Square shoulder milling

ZEFF Face effective cutting edge count

4

ZEFP Peripheral effective cutting edge count

4
