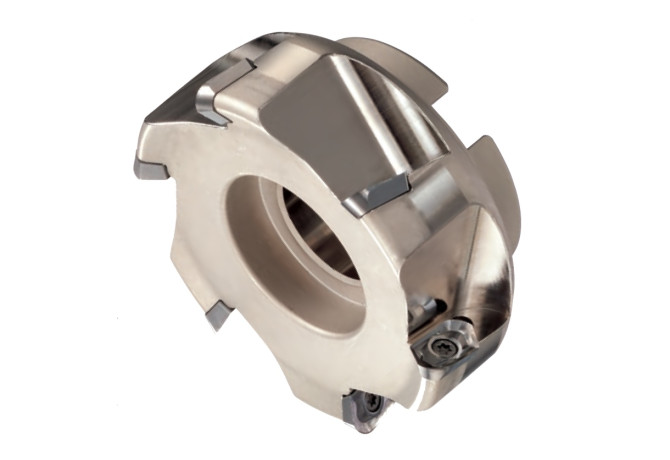

WAX3050-3.2

Артикул: WAX3050-3.2

В наличии

В корзину

Описание

Характеристики

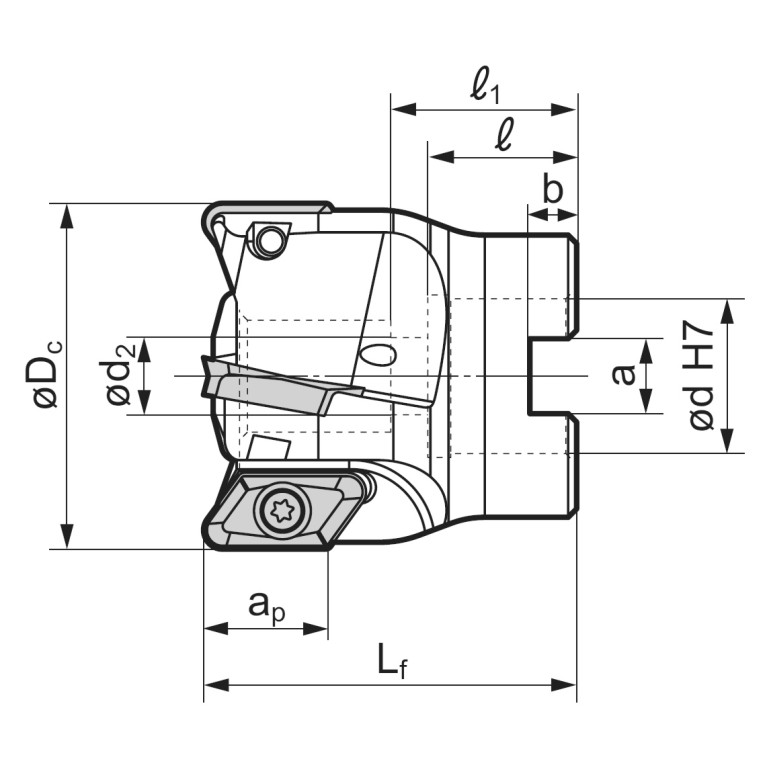

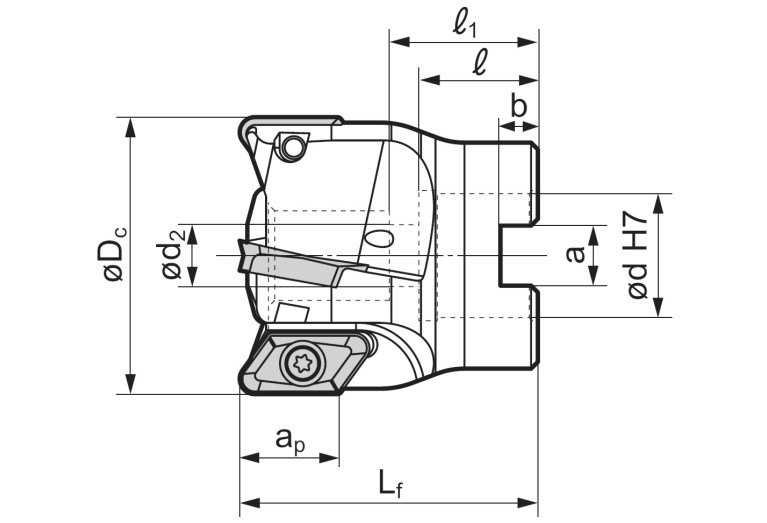

A1A Cutting edge angle major Pos. A

85 Degree

A2A Clearance angle major Pos. A

20 Degree

B1A Cutting edge length Pos. A

17 mm

B2A Insert width Pos. A

16.4 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

5 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

50 mm

DCCB Counterbore diameter connection bore

11 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/3/2012

DIN

FDA02200110

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

corner mill WAX 3000 metric

GAMF Rake angle radial

6 Degree

GAMP Rake angle axial

19 Degree

HAND Cutting direction

R - Right

ID Technical product number

WAX3050-3.2

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

21 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200110

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

WAX3050-3.2

OAL Overall length

50 mm

RMPX Ramping angle maximum

7 Degree

RPMX Rotational speed maximum

20000 1/min

Working process

FEC - Square shoulder milling

WT Weight of item

0.34 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
