Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter TPO18R08DM27.0E07

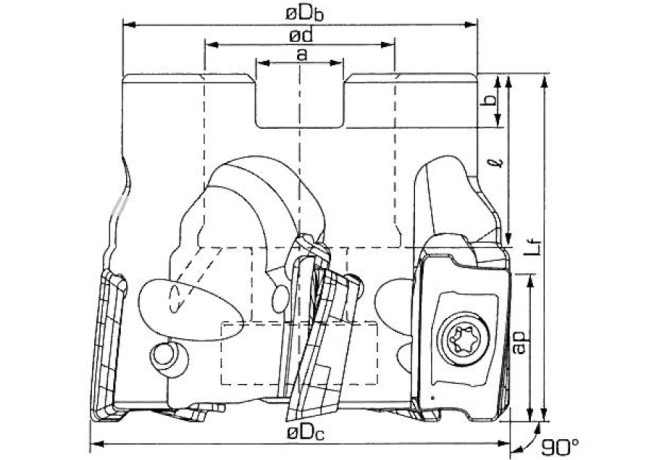

TPO18R08DM27.0E07

TPO18R08DM27.0E07 TPO18R08DM27.0E07

TPO18R08DM27.0E07

Tungaloy
Артикул: TPO18R08DM27.0E07
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
6 Degree
AZ Plunge depth maximum
1 mm
B1A Cutting edge length Pos. A
19.5 mm
B2A Insert width Pos. A
10.7 mm
B3A Inscribed circle diameter Pos. A
10.7 mm
BLDA Tool style code Position A
5
C1A Insert thickness Pos. A
6.1 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
16.7 mm
CICT Cutting item count
7
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
3.2 mm
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/24/2012
DHUB Hub diameter
50 mm
DIN
FDA02700210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
TUNGREC endmill TPO18
GAMF Rake angle radial
27 Degree
GAMP Rake angle axial
16 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
22 mm
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02700210
Name Identifying order number
TPO18R08DM27.0E07
OAL Overall length
50 mm
RMPX Ramping angle maximum
1 Degree
THUB hub thickness
22 mm
Working process
FEC - Square shoulder milling,FNB - Slotting,FNU - Groove milling,FZI - Circular milling
WT Weight of item
1 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
