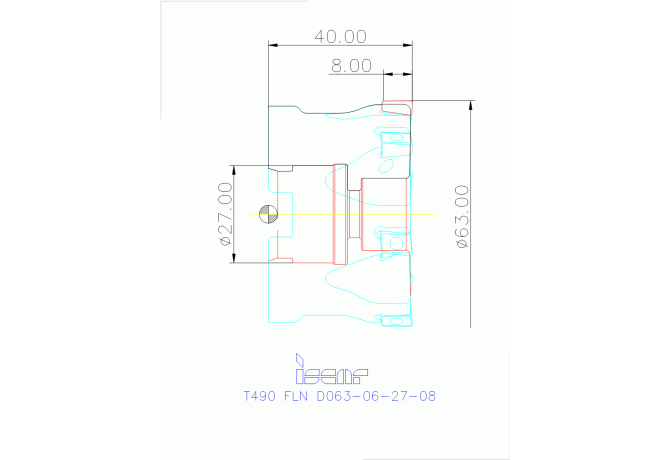

T490 FLN D063-06-27-08

T490 FLN D063-06-27-08 T490 FLN D063-06-27-08

T490 FLN D063-06-27-08

Iscar
Артикул: 3104895
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
60 mm
DIN
FDA02700215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
90° Face Mills with Tangentially Clamped Inserts
HAND Cutting direction
R - Right
ID Technical product number
3104895
Interface codes
J6 / J61
ISO
FDA02G2700H$07
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G2700H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02700215
Name Identifying order number
T490 FLN D063-06-27-08
OAL Overall length
40 mm
RMPX Ramping angle maximum
0 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.6 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
