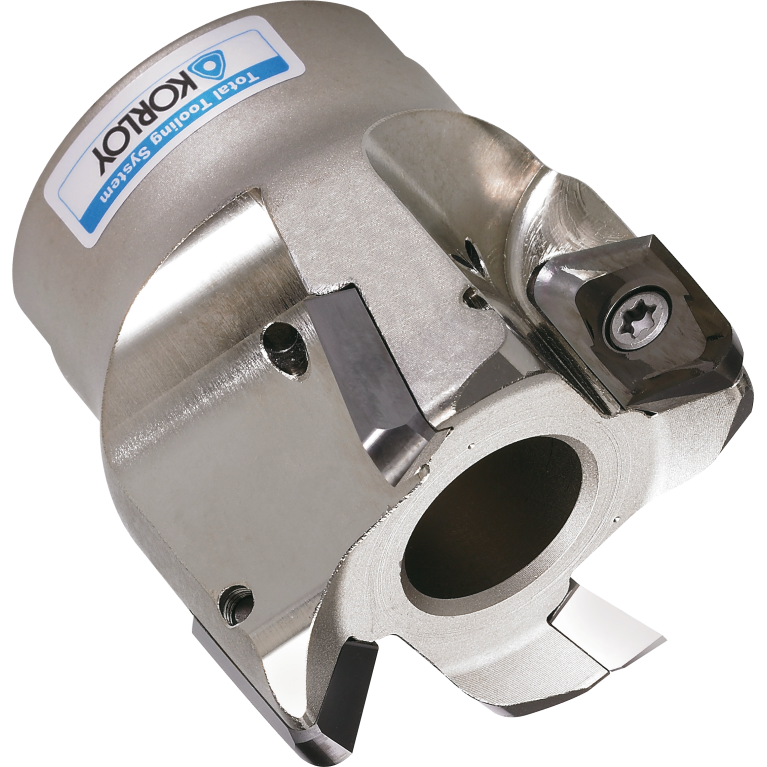

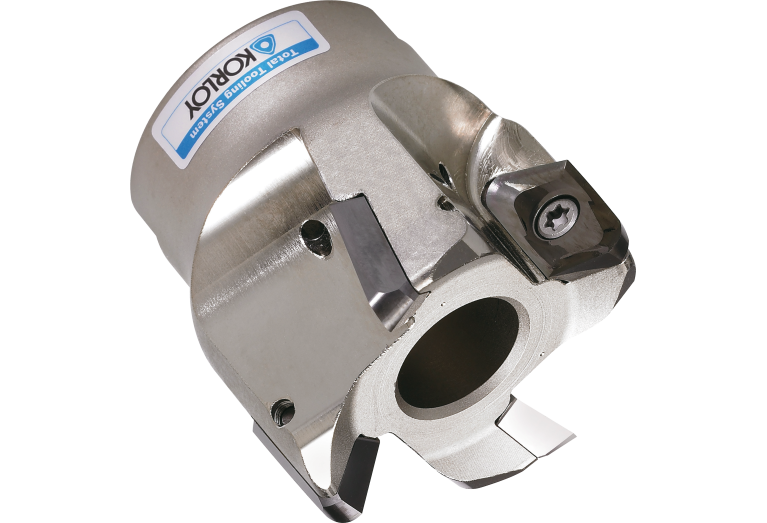

PAXCM6050HR-B

PAXCM6050HR-B PAXCM6050HR-B PAXCM6050HR-B

PAXCM6050HR-B

Korloy
Артикул: PAXCM6050HR-B
В наличии
В корзину
Описание
Характеристики

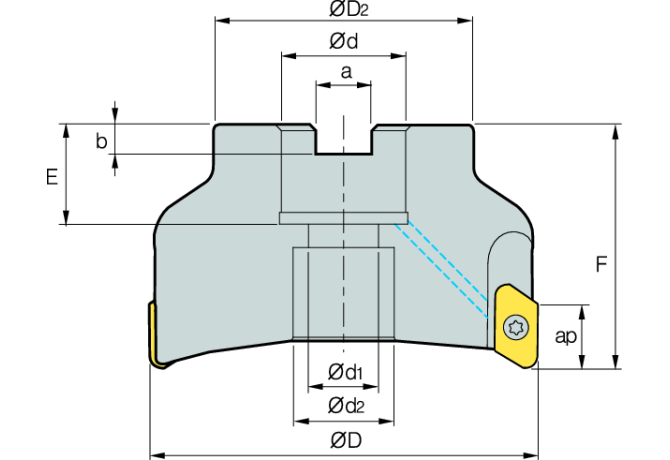

A2A Clearance angle major Pos. A
20 Degree
CCONMS Connection count machine side
1
CDX Cutting depth maximum
23 mm
CICT Cutting item count
2
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D2A Corner chamfer length Pos. A
5 mm
D6A Wiper edge length Pos. A
4 mm
DC Cutting diameter
50 mm
DCCB Counterbore diameter connection bore
14 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DHUB Hub diameter
42 mm
DIN
FDA01602220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
PAXCM6000
GAMF Rake angle radial
-9.5 Degree
GAMP Rake angle axial
8 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01602220
Name Identifying order number
PAXCM6050HR-B
OAL Overall length
50 mm
RPMX Rotational speed maximum
23000 1/min
Working process
No working processes available
WT Weight of item
0.32 kg
ZEFP Peripheral effective cutting edge count
2
