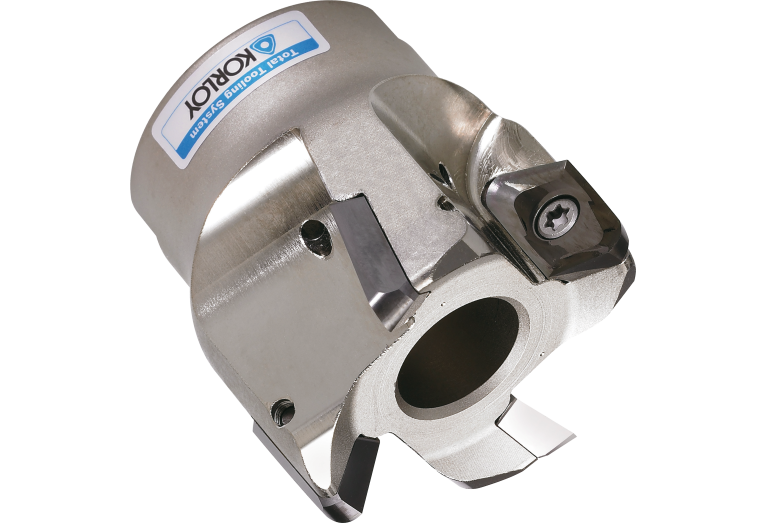

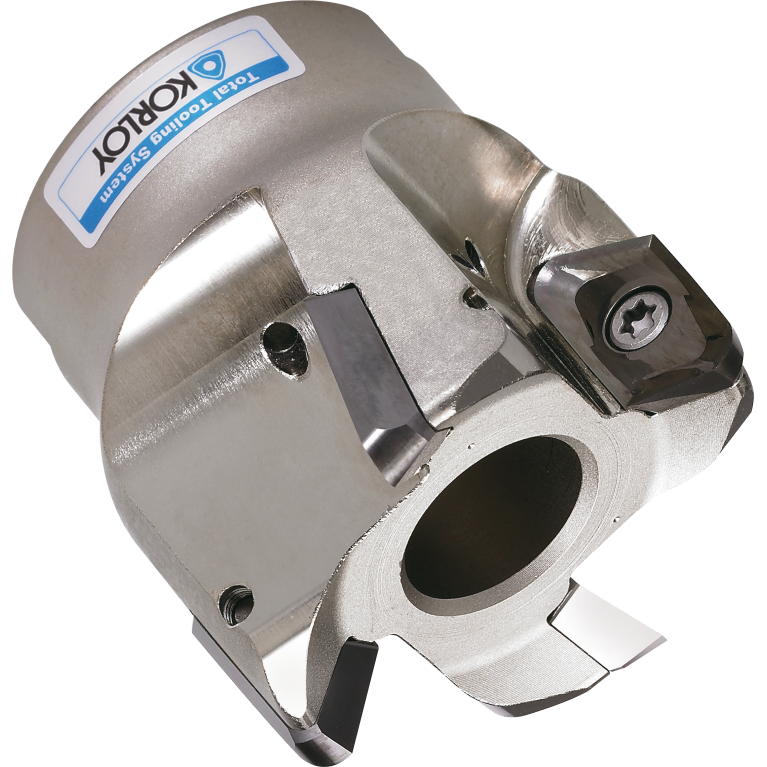

PAXCM5125HR-A

PAXCM5125HR-A PAXCM5125HR-A PAXCM5125HR-A

PAXCM5125HR-A

Korloy
Артикул: PAXCM5125HR-A
В наличии
В корзину
Описание
Характеристики

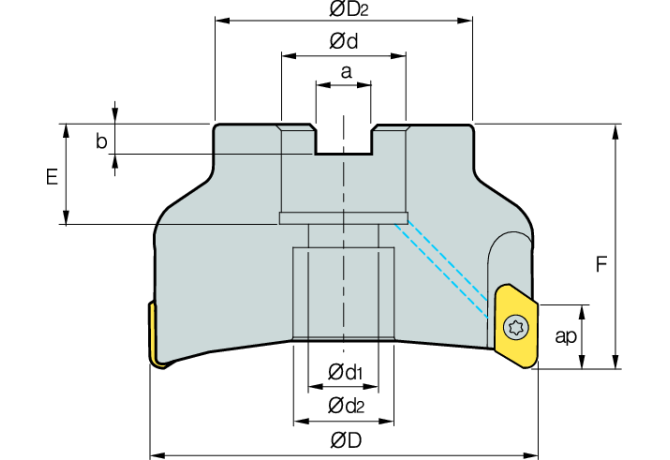

A2A Clearance angle major Pos. A
20 Degree
CCONMS Connection count machine side
1
CDX Cutting depth maximum
17 mm
CICT Cutting item count
7
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D2A Corner chamfer length Pos. A
5 mm
D6A Wiper edge length Pos. A
0.4 mm
DC Cutting diameter
125 mm
DCCB Counterbore diameter connection bore
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DHUB Hub diameter
87 mm
DIN
FDA04002220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
PAXCM5000
GAMF Rake angle radial
-9.5 Degree
GAMP Rake angle axial
8 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002220
Name Identifying order number
PAXCM5125HR-A
OAL Overall length
63 mm
RPMX Rotational speed maximum
14600 1/min
Working process
No working processes available
WT Weight of item
3.2 kg
ZEFP Peripheral effective cutting edge count
7
