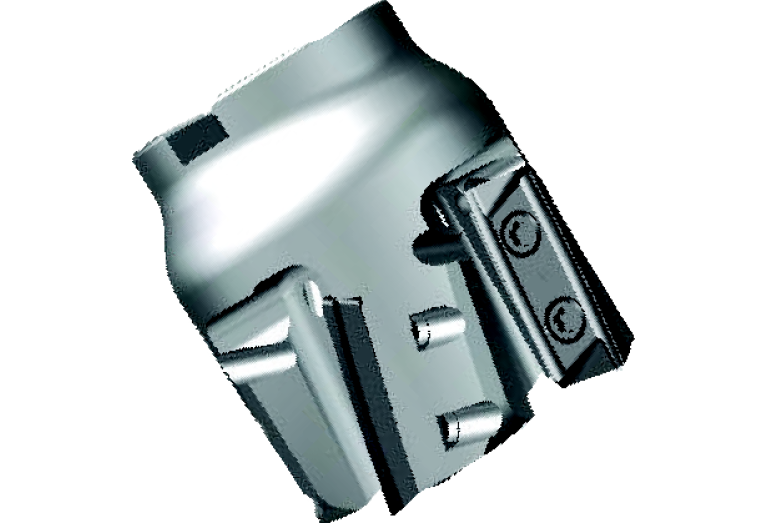

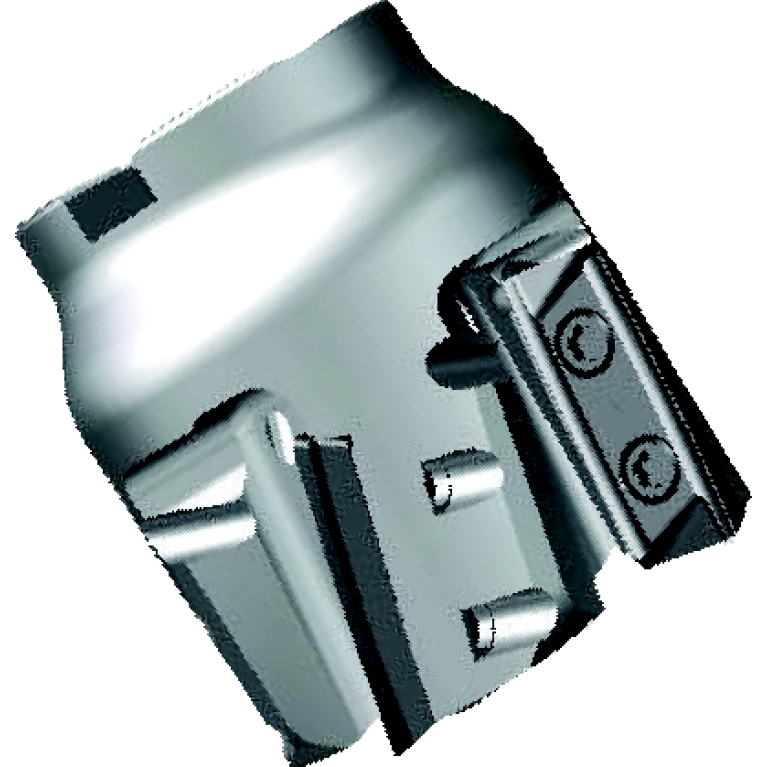

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter PALCM063HR

PALCM063HR

Артикул: 1-06-045363

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

34 mm

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

KOR - Korloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

63 mm

DCCB Counterbore diameter connection bore

18 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/4/2014

DHUB Hub diameter

50 mm

DIN

FDA02202210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

PALCM

GAMF Rake angle radial

-8 Degree

GAMP Rake angle axial

16 Degree

HAND Cutting direction

R - Right

ID Technical product number

1-06-045363

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202210

Name Identifying order number

PALCM063HR

OAL Overall length

70 mm

Working process

No working processes available

WT Weight of item

0.57 kg

ZEFP Peripheral effective cutting edge count
