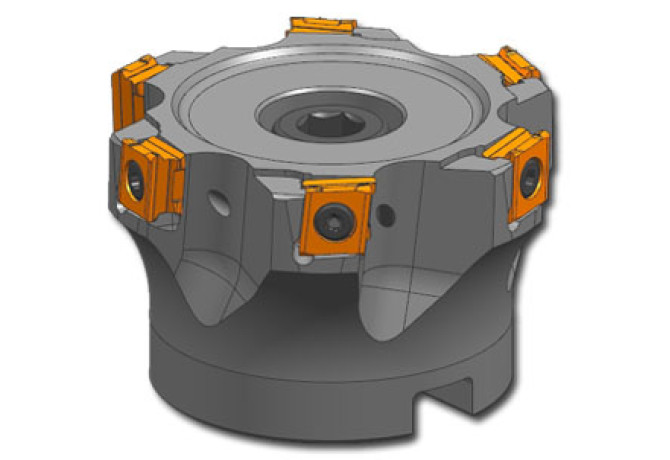

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter M409.0050.A22.07

M409.0050.A22.07

M409.0050.A22.07 M409.0050.A22.07 M409.0050.A22.07

M409.0050.A22.07

Paul Horn
Артикул: M4090050A2207
В наличии
В корзину
Описание
Характеристики
AZ Plunge depth maximum
0.5 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
9.3 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HORN - Paul Horn
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
50 mm
DCCB Counterbore diameter connection bore
19.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/5/2015
DHUB Hub diameter
41 mm
DIN
FDA02200200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
tangential mill M409
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
1 Degree
HAND Cutting direction
R - Right
ID Technical product number
M4090050A2207
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
24 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200200
Name Identifying order number
M409.0050.A22.07
OAL Overall length
40 mm
Working process
FEC - Square shoulder milling,FPL - Face milling
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
