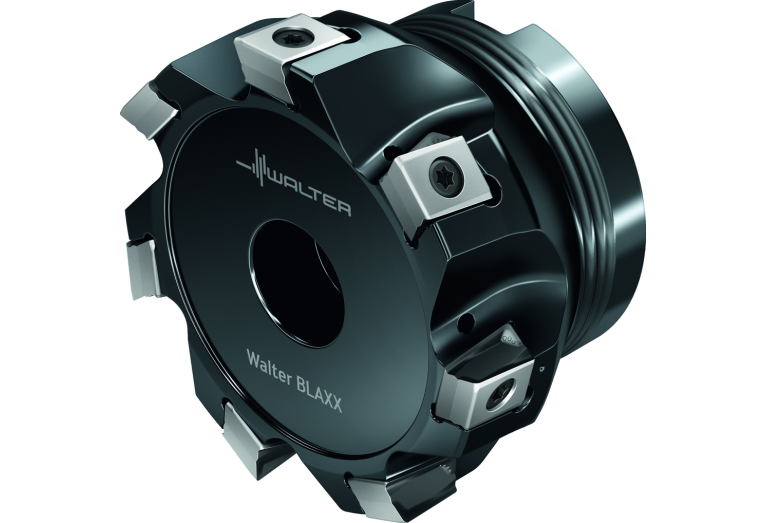

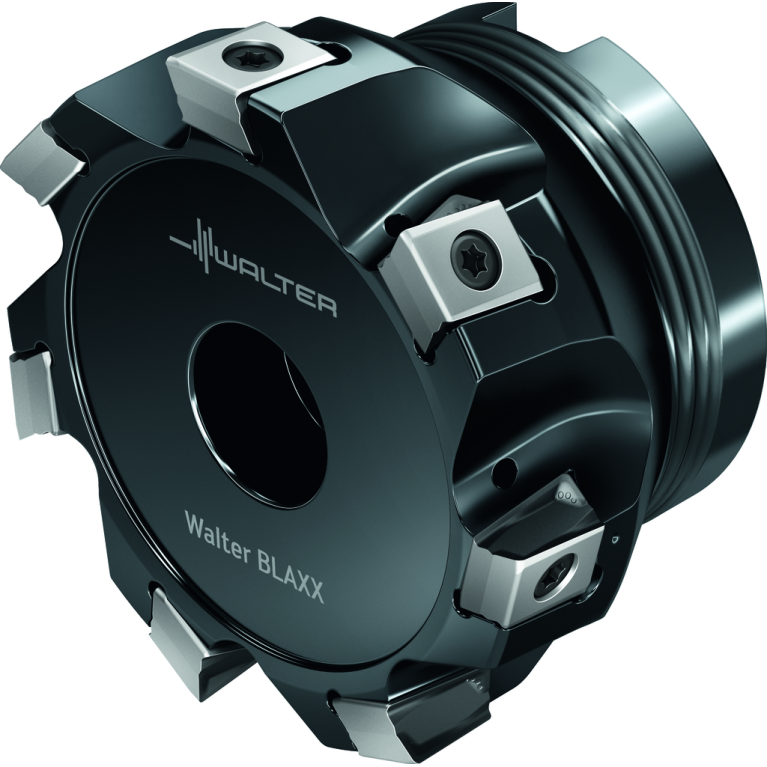

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter F5241.UB38.102.Z06.15

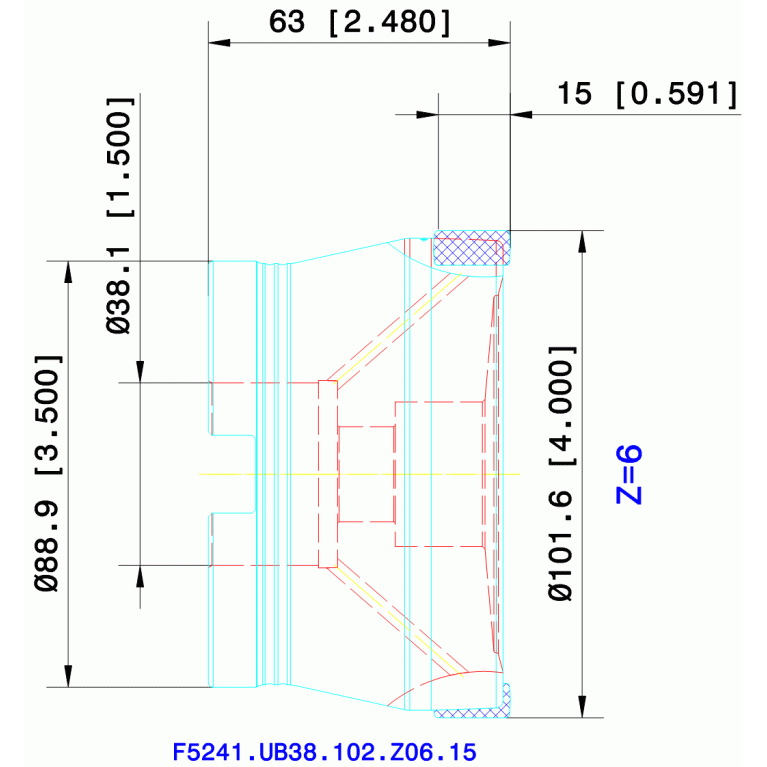

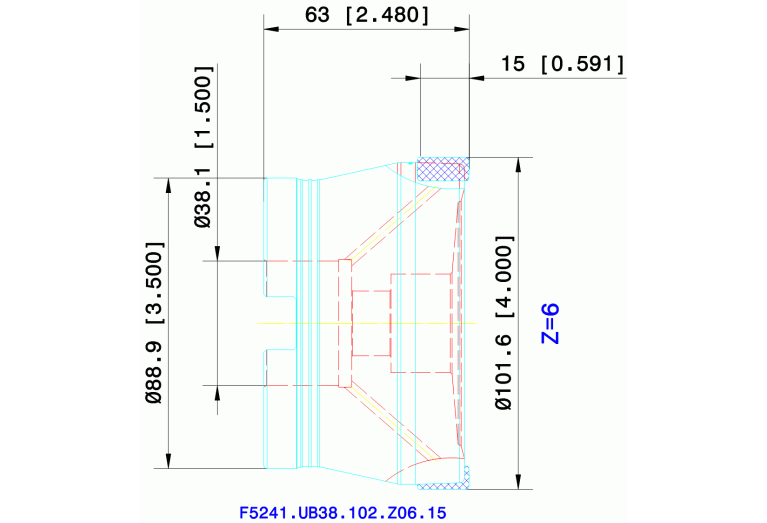

F5241.UB38.102.Z06.15

F5241.UB38.102.Z06.15 F5241.UB38.102.Z06.15 F5241.UB38.102.Z06.15 F5241.UB38.102.Z06.15

F5241.UB38.102.Z06.15

Walter
Артикул: 6865139
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
98.5 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
15 mm
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
33 mm

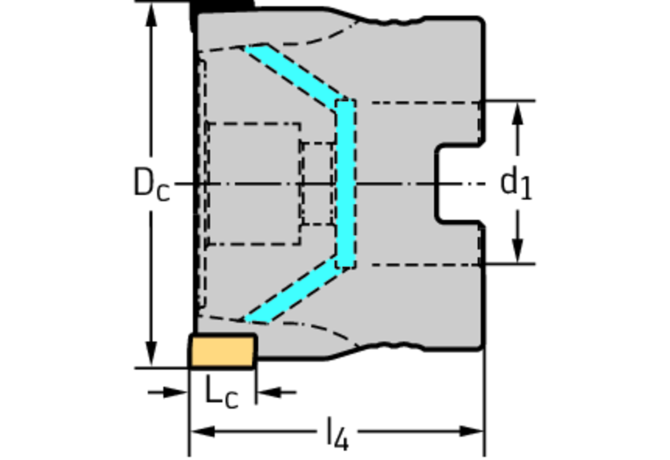

DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
89 mm
DIN
FDA15001220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Shoulder milling cutters F5241
HAND Cutting direction
R - Right
ID Technical product number
6865139
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12S1500$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA12S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15001220
Name Identifying order number
F5241.UB38.102.Z06.15
OAL Overall length
50.013 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
14100 1/min
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
3.385 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
