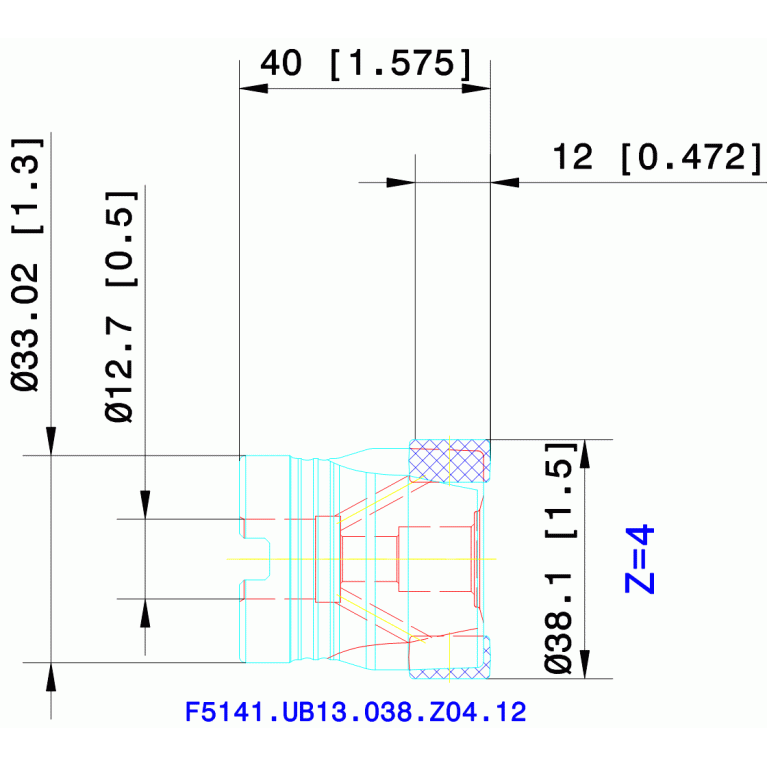

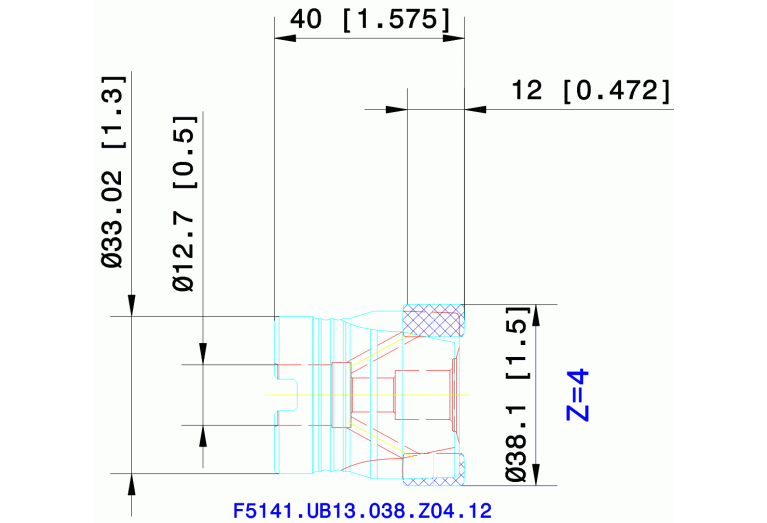

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter F5141.UB13.038.Z04.12

F5141.UB13.038.Z04.12

F5141.UB13.038.Z04.12 F5141.UB13.038.Z04.12 F5141.UB13.038.Z04.12 F5141.UB13.038.Z04.12

F5141.UB13.038.Z04.12

Walter
Артикул: 6195918
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BD Body diameter
35.3 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
12 mm
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

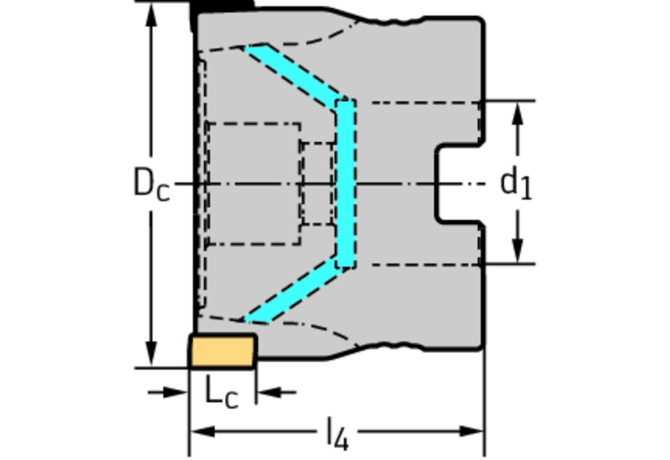

DC Cutting diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
33 mm
DIN
FDA05001230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Shoulder milling cutters F5141
HAND Cutting direction
R - Right
ID Technical product number
6195918
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12R5000$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03 ISO
FDA12R5000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA05001230
Name Identifying order number
F5141.UB13.038.Z04.12
OAL Overall length
40.005 mm
RPMX Rotational speed maximum
23100 1/min
Working process
FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
0.204 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
