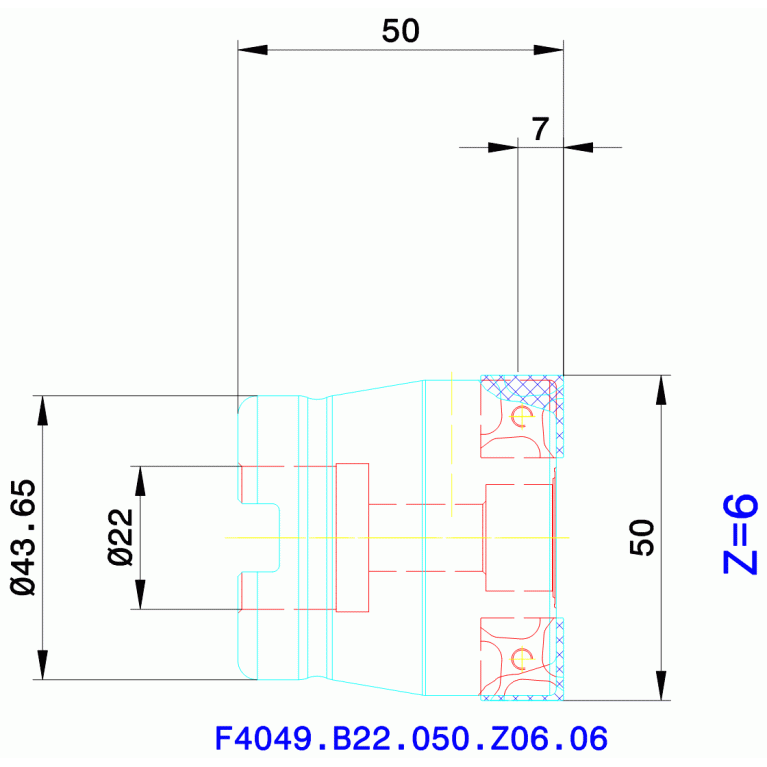

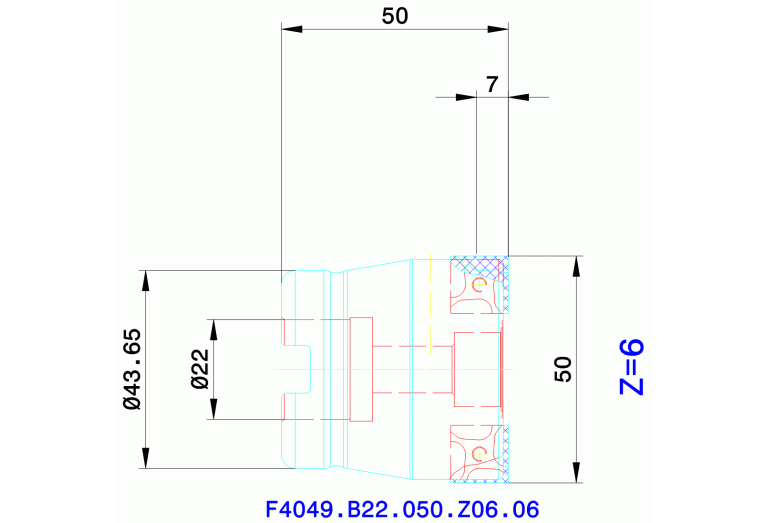

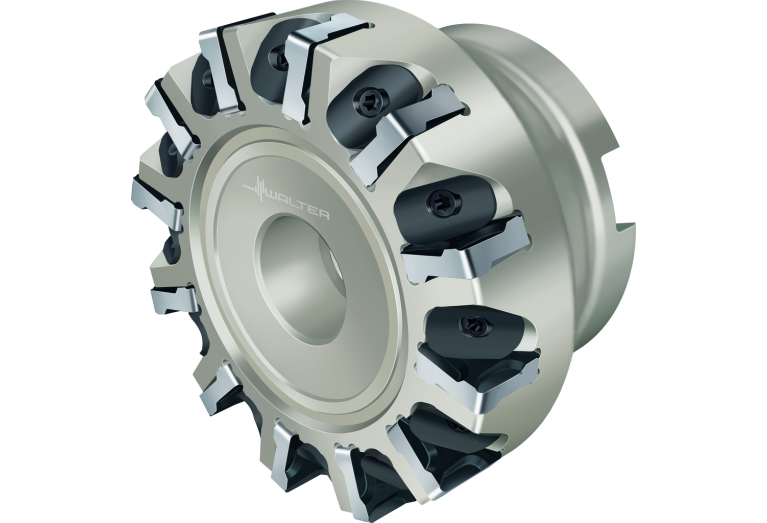

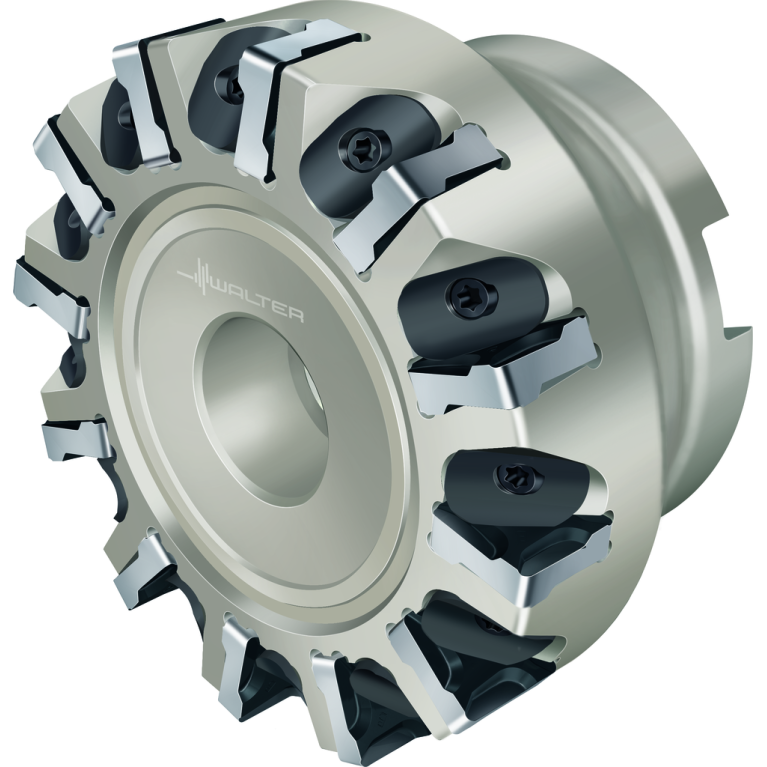

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter F4049.B22.050.Z06.06

F4049.B22.050.Z06.06

F4049.B22.050.Z06.06 F4049.B22.050.Z06.06 F4049.B22.050.Z06.06 F4049.B22.050.Z06.06

F4049.B22.050.Z06.06

Walter
Артикул: 6299115
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.1 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6.5 mm
CICT Cutting item count
6
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
17 mm

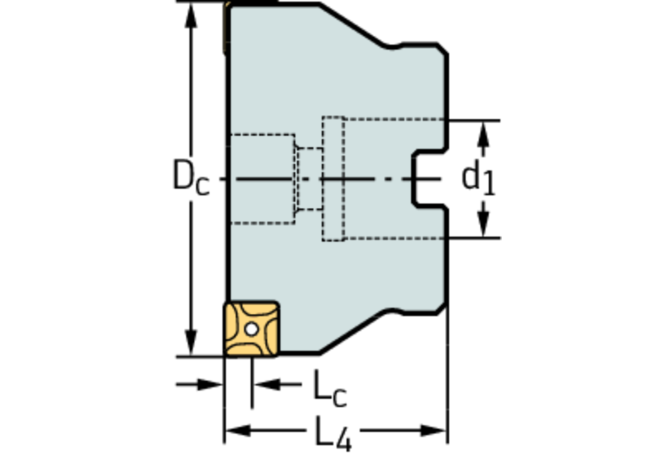

DC Cutting diameter
50 mm
DCCB Counterbore diameter connection bore
16.35 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
43.65 mm
DIN
FDA02201200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Close pitch cutters M2136
HAND Cutting direction
R - Right
ID Technical product number
6299115
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12G2200$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
10.75 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
FDA12G2200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02201200
Name Identifying order number
F4049.B22.050.Z06.06
OAL Overall length
50 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
11200 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
WT Weight of item
0.691 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
