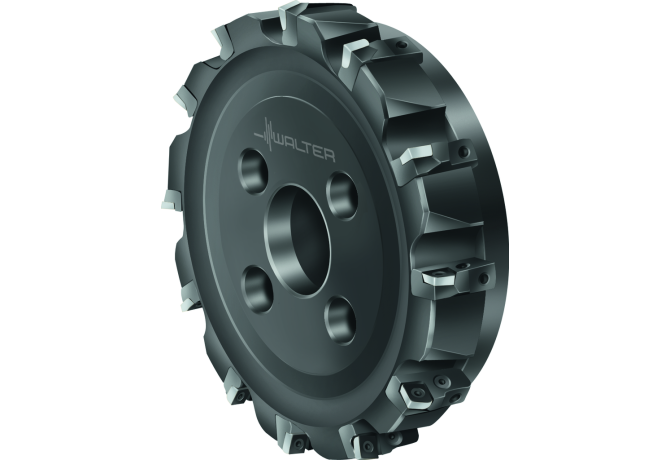

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter F2010.B.100.Z07.11.R445M

F2010.B.100.Z07.11.R445M

F2010.B.100.Z07.11.R445M F2010.B.100.Z07.11.R445M F2010.B.100.Z07.11.R445M F2010.B.100.Z07.11.R445M

F2010.B.100.Z07.11.R445M

Walter
Артикул: 5000207
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
11 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
27 mm

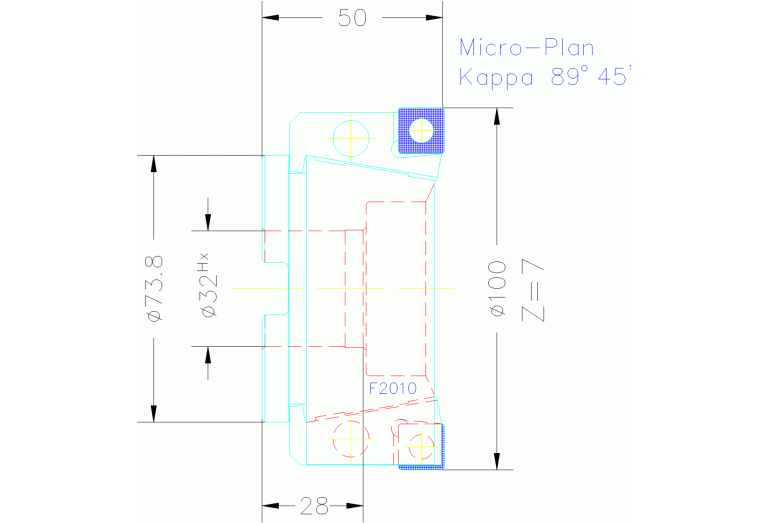

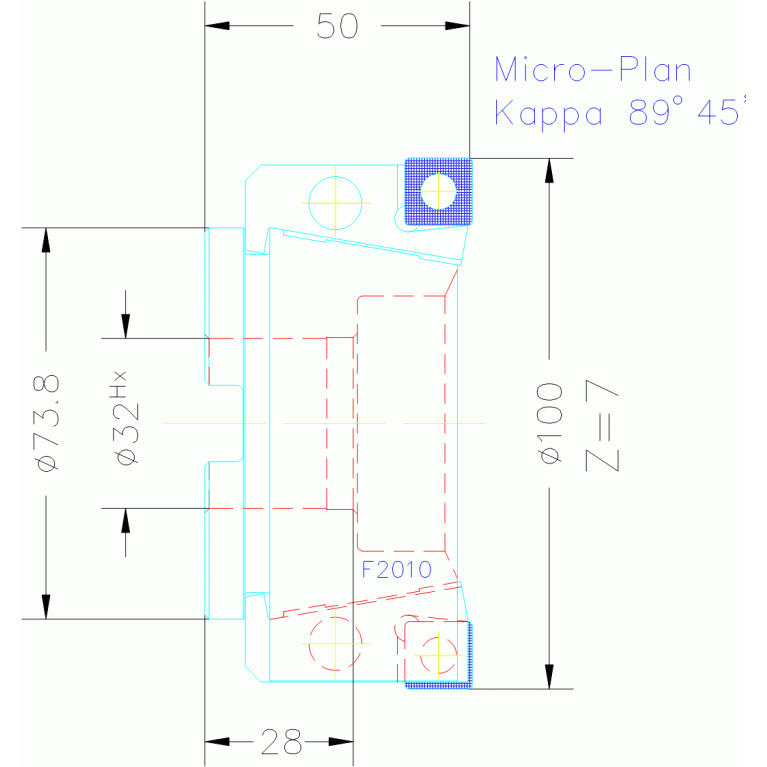

DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
73.8 mm
DIN
FDA03201200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Shoulder milling cutters F2010
HAND Cutting direction
R - Right
ID Technical product number
5000207
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12G3200$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
89.75 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
FDA12G3200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03201200
Name Identifying order number
F2010.B.100.Z07.11.R445M
OAL Overall length
50 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
6000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
1.85 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
