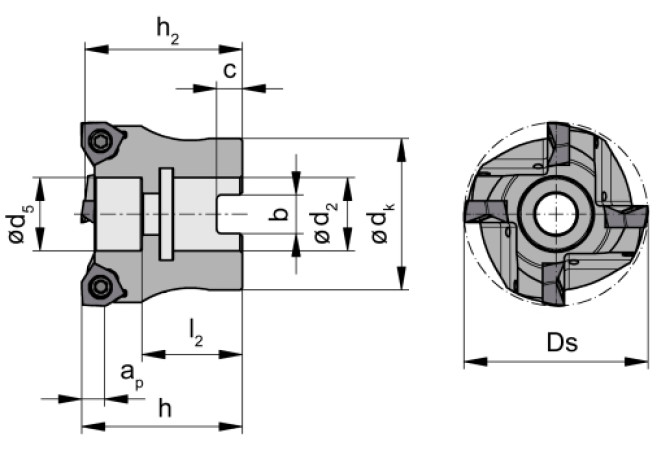

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter DAM32.063.A2745.06

DAM32.063.A2745.06

DAM32.063.A2745.06 DAM32.063.A2745.06

DAM32.063.A2745.06

Paul Horn
Артикул: DAM32063A274506
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
0.6 mm
B1A Cutting edge length Pos. A
4.6 mm
BI Block index
1
BLDA Tool style code Position A
7
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
4.7 mm
CCONMS Connection count machine side
3
CDX Cutting depth maximum
3 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HORN - Paul Horn
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
63 mm
DCCB Counterbore diameter connection bore
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/15/2014
DHUB Hub diameter
49 mm
DIN
FDA02702200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Milling cutter type DAM 32
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
DAM32063A274506
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
18 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
DA32.032.A.00
LOC-01 MTP Clamping type code 1st step
S Screwed on across the bore, with counter bore
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
HORN-DA32.032
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
MIID Master insert identification
DA32.032.A.00
MILTTY Mill tool type ISO
G - Side end mill (one or more indexable insert pro cutting edge) 90°
MTP Clamping type code
S - Screwed across bore with, counter bore
MTP Clamping type code 1st step
S
Name Identifying order number
DAM32.063.A2745.06
OAL Overall length
45 mm
Working process
FEC - Square shoulder milling
ZEFP Peripheral effective cutting edge count
6
