Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter APX3000R10011DA

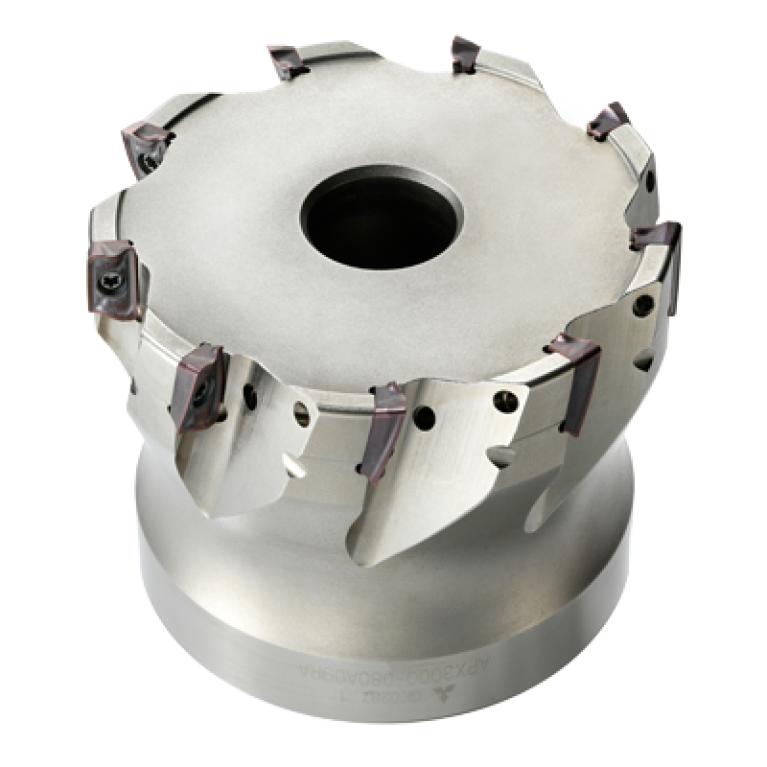

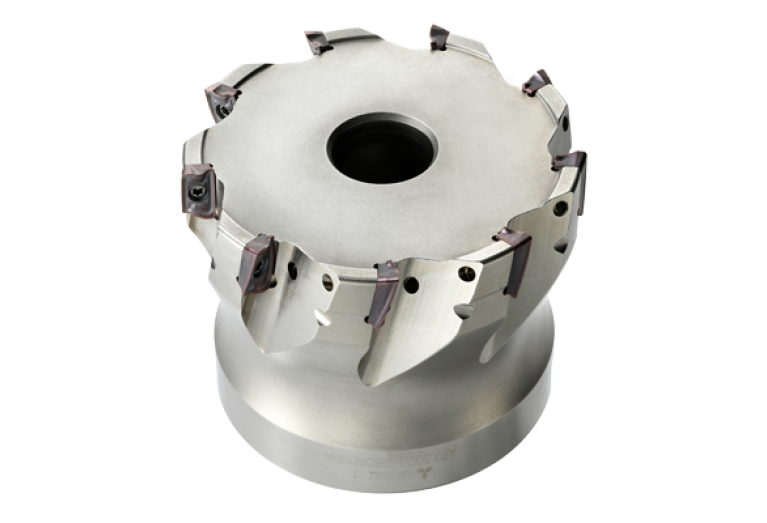

APX3000R10011DA

APX3000R10011DA APX3000R10011DA APX3000R10011DA APX3000R10011DA

APX3000R10011DA

Mitsubishi Materials
Артикул: 489934
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
11 Degree
B1A Cutting edge length Pos. A
10 mm
B2A Insert width Pos. A
6.6 mm
B3A Inscribed circle diameter Pos. A
6.6 mm

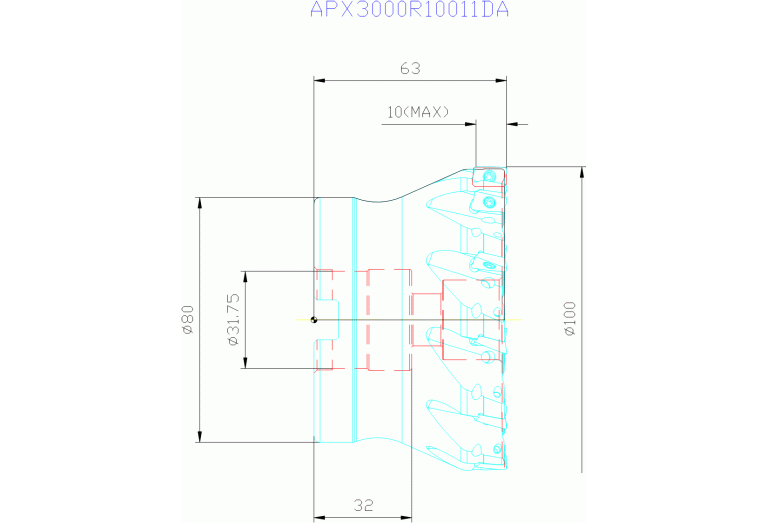

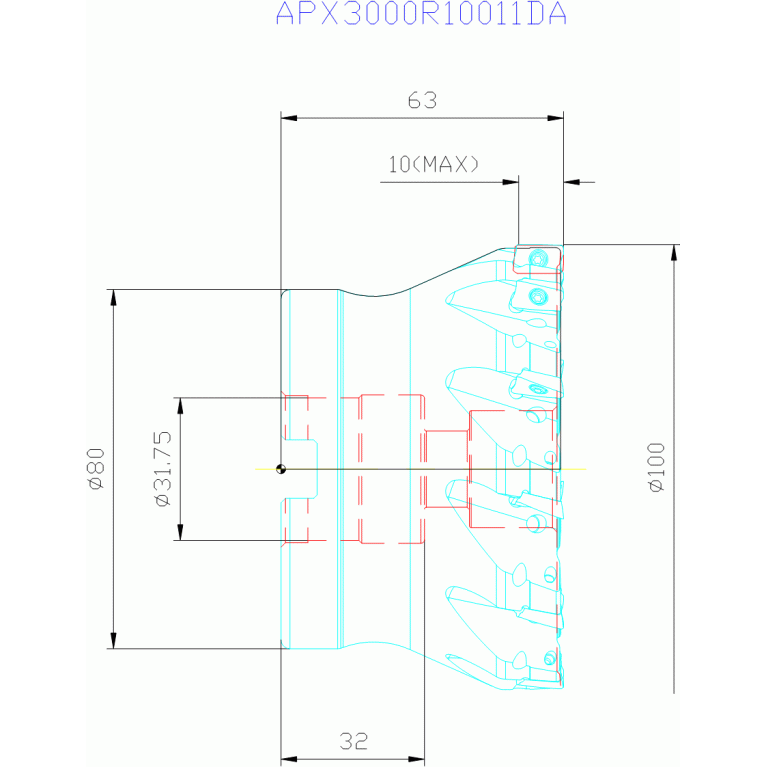

BD Body diameter
80 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
3.6 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
10 mm
CICT Cutting item count
11
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
D6A Wiper edge length Pos. A
1.8 mm
DC Cutting diameter
100 mm
DCCB Counterbore diameter connection bore
26 mm
Delivery state valid from
4/1/2022
DIN
FDA12502230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
11
FamilyProducts
face mills
GAMF Rake angle radial
27 Degree
GAMP Rake angle axial
22 Degree
HAND Cutting direction
R - Right
ID Technical product number
489934
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12502230
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
Name Identifying order number
APX3000R10011DA
OAL Overall length
63 mm
RMPX Ramping angle maximum
0.8 Degree
Working process
No working processes available
WT Weight of item
2.2 kg
ZEFF Face effective cutting edge count
11
ZEFP Peripheral effective cutting edge count
11
