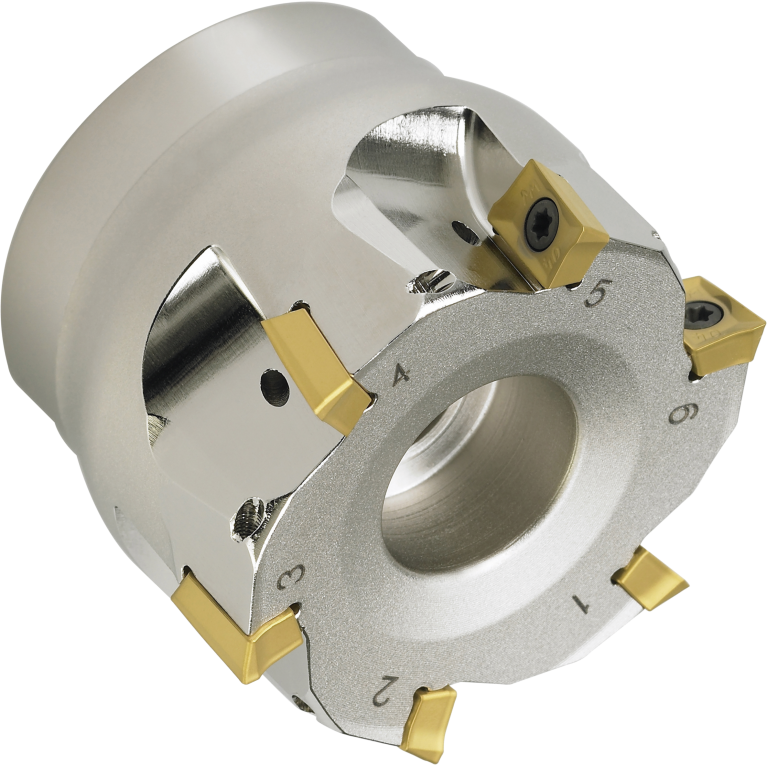

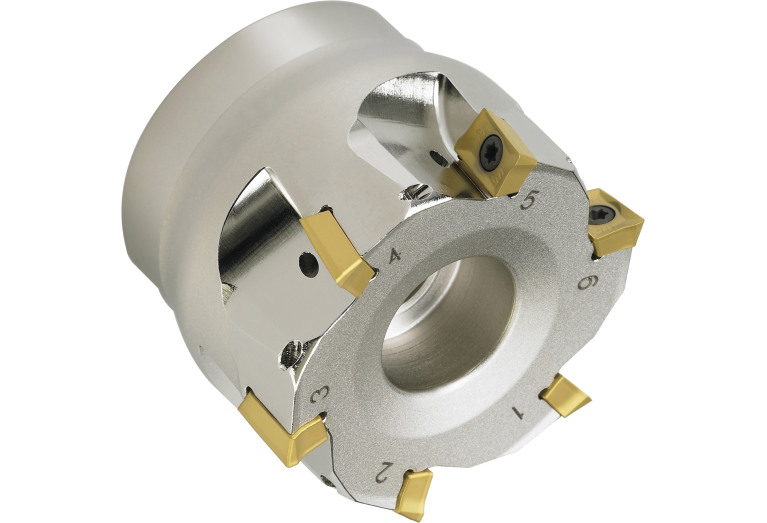

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter AMCM15080HS

AMCM15080HS

AMCM15080HS AMCM15080HS AMCM15080HS

AMCM15080HS

Korloy
Артикул: 1-06-016679
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A2A Clearance angle major Pos. A
11 Degree
BLDA Tool style code Position A
5
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CDX Cutting depth maximum
9 mm
CICT Cutting item count
10
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
80 mm
DCCB Counterbore diameter connection bore
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DHUB Hub diameter
57 mm
DIN
FDA02702220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
AMCM1500S
GAMF Rake angle radial
-14 Degree
GAMP Rake angle axial
9 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-016679
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702220
Name Identifying order number
AMCM15080HS
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
1.1 kg
ZEFP Peripheral effective cutting edge count
10
