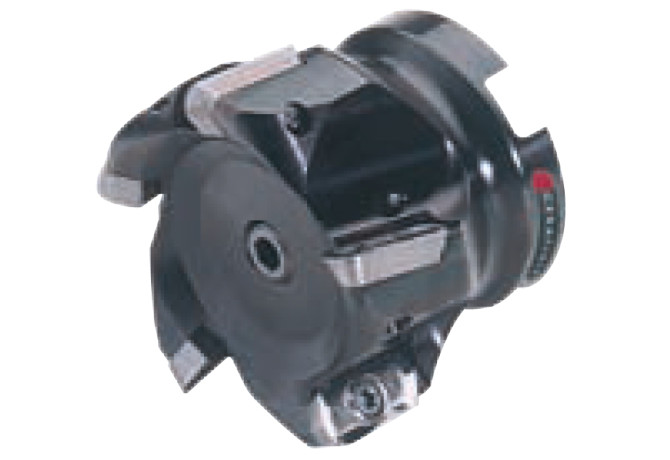

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter AHSC.63.R.04-19

AHSC.63.R.04-19

AHSC.63.R.04-19 AHSC.63.R.04-19 AHSC.63.R.04-19

AHSC.63.R.04-19

Ceratizit
Артикул: AHSC.63.R.04-19
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.86 mm
BD Body diameter
61.3 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
18 mm
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
48 mm
DIN
FDA02200210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Maximill shell milling cutter
GAMF Rake angle radial
10 Degree
GAMP Rake angle axial
-4 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200210
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
AHSC.63.R.04-19
OAL Overall length
50 mm
RMPX Ramping angle maximum
3 Degree
RPMX Rotational speed maximum
18800 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
