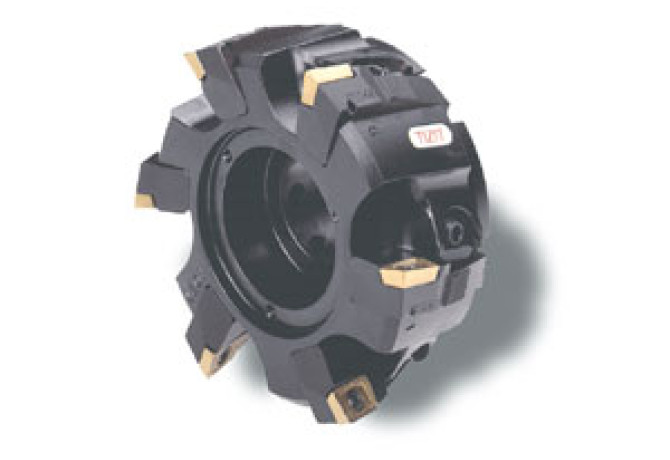

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter A260.25.R.14/042

A260.25.R.14/042

A260.25.R.14/042 A260.25.R.14/042

A260.25.R.14/042

Ceratizit
Артикул: A260.25.R.14/042
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A2A Clearance angle major Pos. A
11 Degree
ADJBY Adjustment property
1 - Radial adjustment possible
B1A Cutting edge length Pos. A
9.8 mm
B3A Inscribed circle diameter Pos. A
6.35 mm
BD Body diameter
244 mm
BLDA Tool style code Position A
5
C1A Insert thickness Pos. A
3.5 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
8 mm
CICT Cutting item count
14
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
257 mm
DCP Data chip provision
0 - Without data chip
DHUB Hub diameter
222 mm
DIN
SPK06000200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
14
FamilyProducts
Maximil cassette cutter complete
HAND Cutting direction
R - Right
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000200
Name Identifying order number
A260.25.R.14/042
OAL Overall length
63 mm
Working process
FEC - Square shoulder milling,FPL - Face milling
ZEFP Peripheral effective cutting edge count
14
