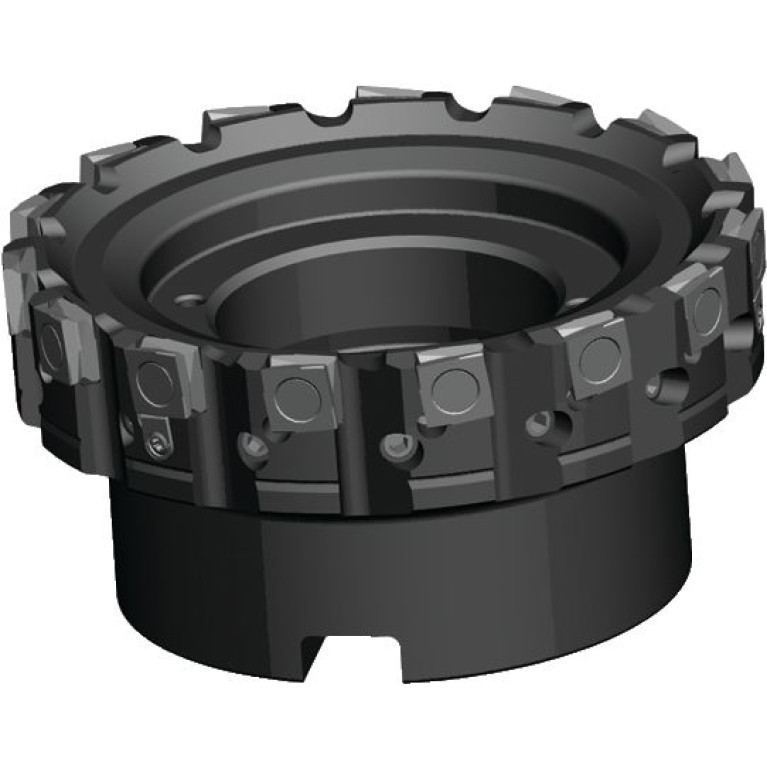

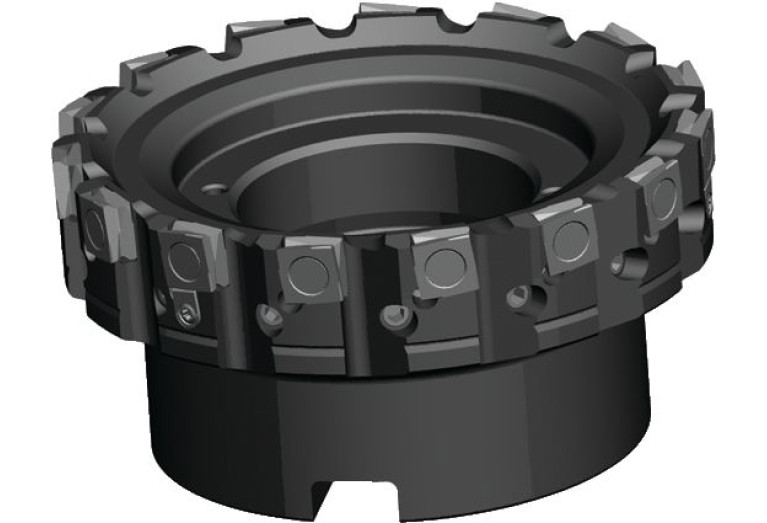

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 80A06RP90SP12C1WFP

80A06RP90SP12C1WFP

80A06RP90SP12C1WFP 80A06RP90SP12C1WFP 80A06RP90SP12C1WFP

80A06RP90SP12C1WFP

Kennametal
Артикул: 1503013
В наличии
В корзину
Описание
Характеристики

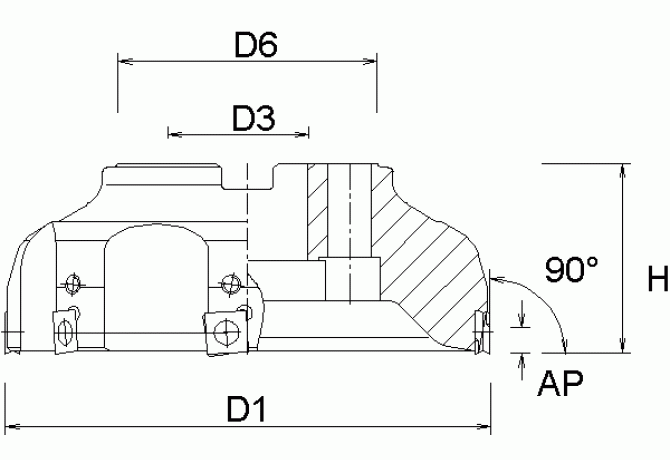

A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
11 Degree
BD Body diameter
79 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
5.5 mm
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6 mm
CICT Cutting item count
6
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DHUB Hub diameter
64 mm
DIN
FDA02701210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
FACE MILL 90° 80-250
HAND Cutting direction
R - Right
ID Technical product number
1503013
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02701210
Name Identifying order number
80A06RP90SP12C1WFP
OAL Overall length
50 mm
RPMX Rotational speed maximum
4000 1/min
Working process
No working processes available
WT Weight of item
1.12 kg
ZEFP Peripheral effective cutting edge count
6
