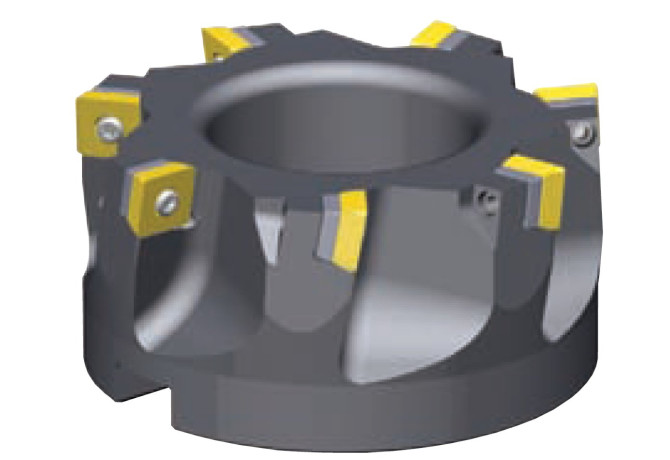

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 63A04RS90SD12DG

63A04RS90SD12DG

63A04RS90SD12DG 63A04RS90SD12DG 63A04RS90SD12DG

63A04RS90SD12DG

Kennametal
Артикул: 1926936
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
9.2 mm
CICT Cutting item count
4
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DHUB Hub diameter
50 mm
DIN
FDA02200200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
90° Lead Mill - KSSM, coarse pitch, metric
HAND Cutting direction
R - Right
ID Technical product number
1926936
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200200
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
63A04RS90SD12DG
OAL Overall length
40 mm
RPMX Rotational speed maximum
18300 1/min
Working process
No working processes available
WT Weight of item
0.5 kg
ZEFP Peripheral effective cutting edge count
4
