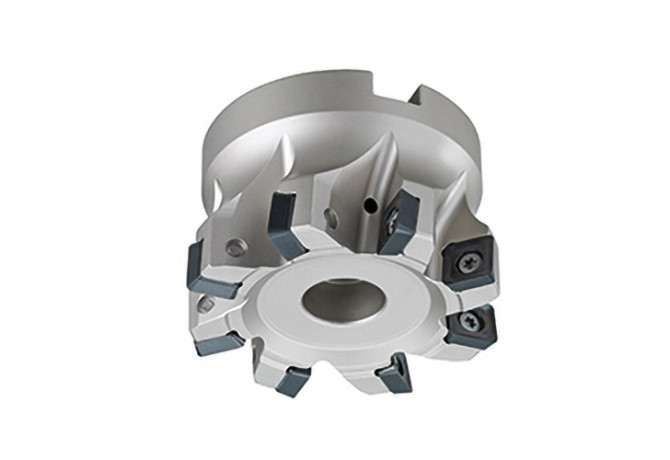

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 5J5P160R00

5J5P160R00

Артикул: 5882490

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CCONMS Connection count machine side

CDX Cutting depth maximum

11.3 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

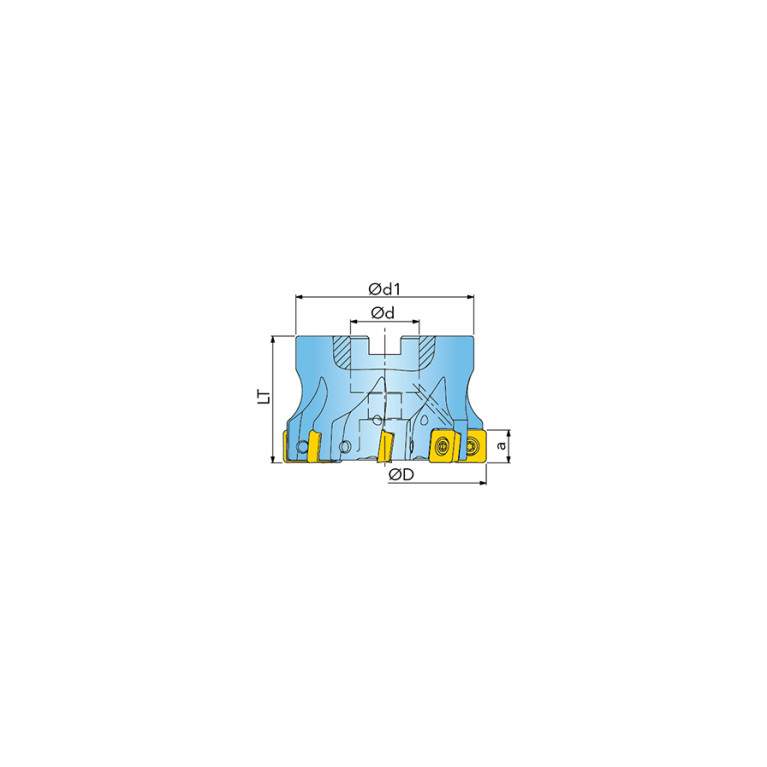

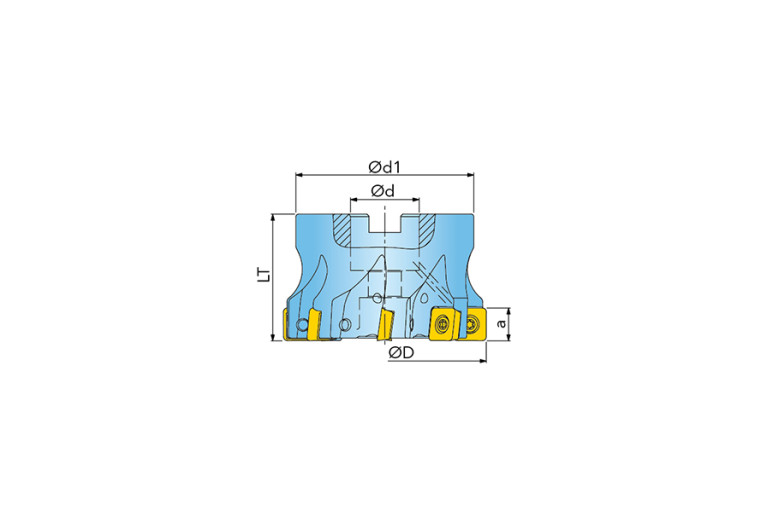

DC Cutting diameter

160 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LL - Stock limited

DHUB Hub diameter

100 mm

DIN

FDA04002210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder-Type Face Mill 5J5P

HAND Cutting direction

R - Right

ID Technical product number

5882490

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-02 - Shoulder milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002210

Name Identifying order number

5J5P160R00

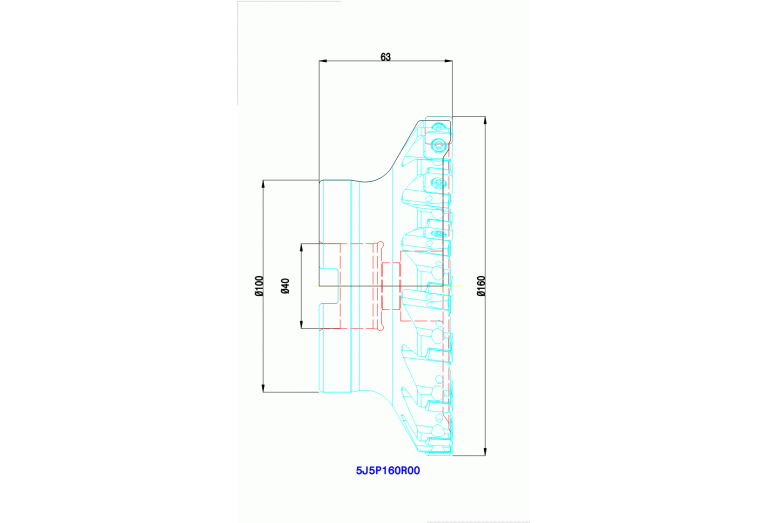

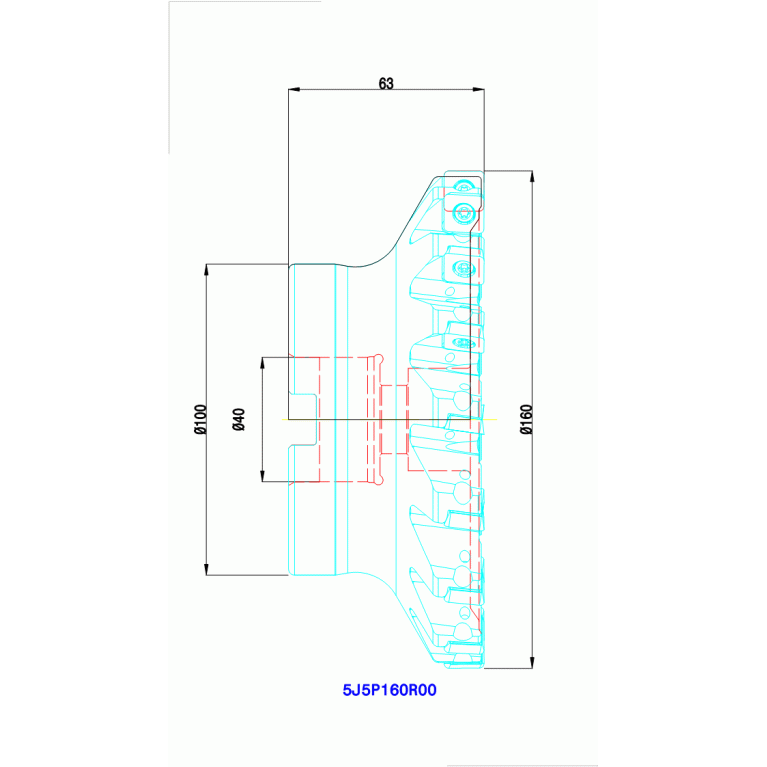

OAL Overall length

63 mm

RMPX Ramping angle maximum

0.5 Degree

Working process

No working processes available

WT Weight of item

4.42 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
