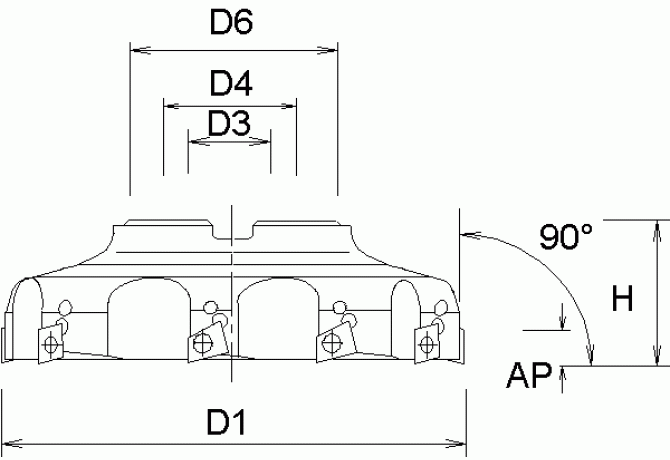

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 4.02510R312

4.02510R312

Артикул: 4.02510R312

В наличии

В корзину

Описание

Характеристики

BD Body diameter

130 mm

BI Block index

CCONMS Connection count machine side

COMPC Company code

KH - Kennametal

DC Cutting diameter

250 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DHUB Hub diameter

101.6 mm

DIN

KH-FWEF R31260

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

FACE MILL R312 4.215

HAND Cutting direction

R - Right

ID Technical product number

4.02510R312

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

KH-WP 215R66R312

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CZCMS Connection size code

0600

LOC-03 DCONMS Diameter

60 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWEF R31260

Name Identifying order number

4.02510R312

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

10.8 kg

ZEFP Peripheral effective cutting edge count
