Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 4.00606R311

4.00606R311

Артикул: 1191202

В наличии

В корзину

Описание

Характеристики

BD Body diameter

42 mm

BI Block index

CCONMS Connection count machine side

COMPC Company code

KH - Kennametal

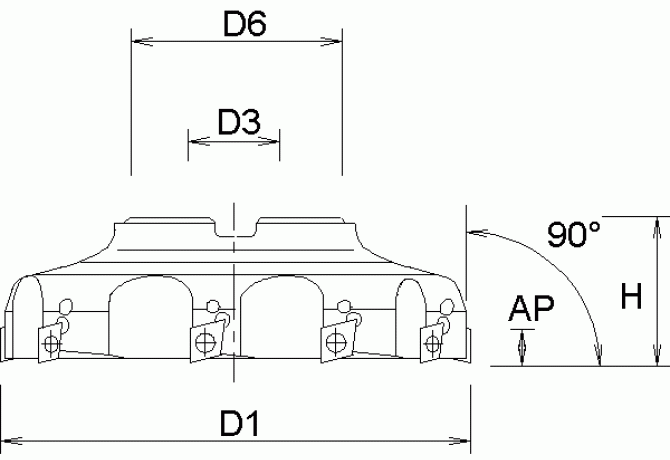

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/4/2011

DIN

KH-FWEF R31122

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

FACE MILL R311 4.211

HAND Cutting direction

R - Right

ID Technical product number

1191202

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

KH-WP 21103RALUR311

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

KH-WP 211R611R311

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KH-FWEF R31122

Name Identifying order number

4.00606R311

OAL Overall length

40 mm

Working process

No working processes available

WT Weight of item

0.45 kg

ZEFP Peripheral effective cutting edge count
